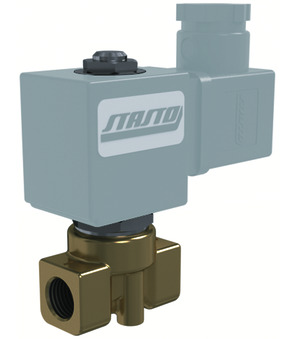

2/2-way solenoid valve 21A5KT45

Name: 2/2-way solenoid valve 21A5KT45
Brand: STASTO
SKU: 21A5KT45
Price: 53.3 EUR
Availability: InStock

2/2-way solenoid valve Series 21A; Directly operated; NC; Body Brass; Tube Stainless steel One-piece; Seal PTFE; Medium temperature -40...+120°C; Standard coil BDA; Connector size 32mm; G 3/8"; DN 4,5mm; Pressure AC 0...5bar; Pressure DC 0...1,5bar; Length 46mm

Intrastat No.: 84818099
Country of origin: Italy

Weight: 0.17 Kg
Short Itemnumber: 21A5KT45

Scope of delivery

1 valve, without coil, without connector

53,30 € 53.3 EUR 53,30 €

excl. tax

This combination does not exist.

Availability:

See availability

Add to cart

Technical specifications

Female thread	G 3/8"
DN	4,5 mm
Pressure AC	0...5 bar
Pressure DC	0...1,5 bar

All specifications (8)

Documents

Data sheets, drawings and CAD files

Female thread	G 3/8"
DN	4,5 mm
Pressure AC	0...5 bar
Pressure DC	0...1,5 bar
Length	46 mm
Function	NC
Seal	PTFE
Medium temperature	-40...+180 °C

21A5KT45

Documents

1 Documents

Language-independent

ZIP

CAD / 3D

STP
CADSTEP · 21A5KT45
CAD-STEP 3,4 MB Updated 25/10/2026

Download

21A5KV45 x 1.0 Pcs

2/2-way solenoid valve 21A5KV45

2/2-way solenoid valve Series 21A; Directly operated; NC; Body Brass; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Standard coil BDA; Connector size 32mm; G 3/8"; DN 4,5mm; Pressure AC 0-5bar; Pressure DC 0-2bar; Length 46mm
