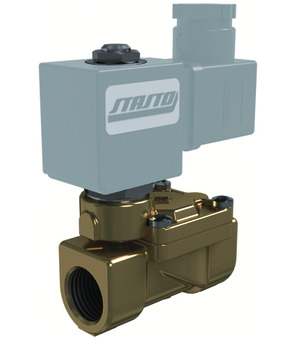

2/2-way solenoid valve 21WA4K0B130-Y1220-240V/50-60HZ-2
21WA4K0B130-Y224VDC-2
21WA4K0B130-Y224VDC-2
265,60 €
265,60 €
2/2-way solenoid valve 21WA4K0B130-BDA08012CS-C003-31-CV20-6
2/2-way solenoid valve 21WA4K0B130-BDA08012CS-C003-31-CV20-6
112,70 €
112,70 €

2/2-way solenoid valve 21WA4K0B130-Y1220-240V/50-60HZ-2

21WA4K0B130
2/2-way solenoid valve Series 21W, 21WA; Pilot-operated; NC; Body Brass; Tube Stainless steel One-piece; Seal NBR; Medium temperature -10...+90°C; Standard coil BDA; Connector size 32mm; G 1/2"; DN 13mm; Pressure AC/DC 0,2-16bar; Length 66mm
Y1220-240V/50-60HZ-2
Mounted coil; Type Y1, ATEX- II 2G Exmb IIC T4/ II 2D Exmb tb IIIC T130°C; Cable length 3m; Voltage 220-240V/50-60Hz; Medium temperature Max. 80°C

Intrastat No.: 84818099
Country of origin: Germany
Weight: 0.945 Kg
Short Itemnumber:21WA4K0B130Y1220240V5060HZ2
https://www.stasto.si/web/image/product.template/211230/image_1920?unique=eb38ccc

21WA4K0B130
2/2-way solenoid valve series 21W, 21WA; pilot-operated; NC; body brass; tube stainless steel one-piece; seal NBR; medium temperature -10...+90°C; standard coil BDA; connector size 32mm; G 1/2"; DN 13mm; pressure AC/DC 0,2-16bar; length 66mm
Y1220-240V/50-60HZ-2
mounted coil; type Y1, ATEX- II 2G Exmb IIC T4/ II 2D Exmb tb IIIC T130°C; cable length 3m; voltage 220-240V/50-60Hz; medium temperature max. 80°C

222,60 € 222.6 EUR 222,60 €

cena na zahtevo

  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Pressure AC/DC
  • Seal
  • Coil
  • Medium temperature
  • Approval

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 1/2"
DN 13 mm
Length 66 mm
Designs
Connector size 32 mm
design
Design ATEX
pressure
Pressure AC/DC 0,2...16 bar
materials
Seal NBR
characteristics
Coil BDA
Medium temperature -10...+90 °C
