Ball valve with electrical actuator 8E004004-3"

Price:

1.500,42 €
Ball valve with electrical actuator Series 8E004 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Ball valves - electrically operated
  5. Ball valve with electrical actuator Series 8E004
  6. 8E004004-3"

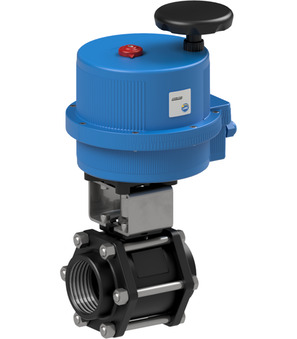

Ball valve with electrical actuator 8E004004-3"
Ball valve with electrical actuator 8E004002-3"
Ball valve with electrical actuator 8E004002-3"
1.430,94 €
1.430,94 €
Ball valve with electrical actuator 8E004002-4"
Ball valve with electrical actuator 8E004002-4"
1.983,34 €
1.983,34 €

Ball valve with electrical actuator 8E004004-3"

Ball valve with electrical actuator Series 8E004; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; RP 3"; DN 80mm; Pressure range 0-16bar; Length 180mm; Operating time 27s; Voltage 100-240VAC

Intrastat No.: 84818081
Country of origin: Italy
Weight: 18.52 Kg
Short Itemnumber:8E0040043
https://www.stasto.si/web/image/product.template/76084/image_1920?unique=9a3e815

Ball valve with electrical actuator Series 8E004; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; RP 3"; DN 80mm; Pressure range 0-16bar; Length 180mm; Operating time 27s; Voltage 100-240VAC

1.500,42 € 1500.42 EUR 1.500,42 €

cena na zahtevo

  • Female thread
  • DN
  • Length
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
Contact Us
dimension
Female thread RP 3"
DN 80 mm
Length 180 mm
Electrical key figures
Voltage 100-240VAC
pressure
Pressure range 0...16 bar
characteristics
Actuator VB110H
Operating time 27 s

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Declarations of Conformity
1
Declaration of conformity_Ball valve with electrical actuator Series 8E004_EN.pdf
Download
CAD / 3D
1
CADSTEP_8E0040043.stp
Download

ZIP
Prohlášení o shodě
1
Prohlášení o shodě_kulový kohout s elektropohonem série 8E004_CS.pdf
Download

ZIP
Konformitätserklärungen
1
Konformitätserklärung_Kugelhahn mit Elektroantrieb Serie 8E004_DE.pdf
Download

ZIP
Megfelelőségi nyilatkozatok
1
Megfelelőségi nyilatkozat_elektromos hajtóművel működtetett gömbcsap sorozat 8E004_HU.pdf
Download

ZIP
Deklaracje zgodności
1
Deklaracja zgodności_zawór kulowy z napędem elektrycznym Seria 8E004_PL.pdf
Download

ZIP
Izjave o skladnosti
1
Izjava o skladnosti_Krogelna pipa z električnim pogonom serija 8E004_SL.pdf
Download

ZIP
Declarations of Conformity
1
Deklaracija o usklađenosti_kuglasti ventil sa električnim aktuatorom serije 8E004_SRLATIN.pdf
Download
Ball valve made of steel 713000-3"
713000-3" x 1.0
Ball valve made of steel 713000-3"
Ball valve made of steel Series 713000; Full bore; Three-parts type; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; RP 3"; Nominal diameter 80mm; Pressure range 0-16bar; Length 180mm
Add to Cart
Electrical actuator VB110-H
VB110-H x 1.0
Electrical actuator VB110-H
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 110Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 100-240VAC; Protection class IP67
