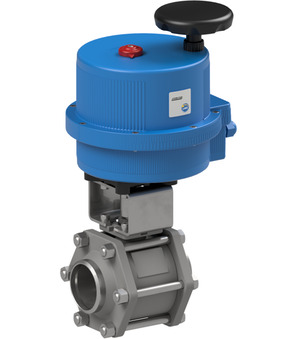

Ball valve with electrical actuator 8E031004-4"

Ball valve with electrical actuator 8E031004-4"

Ball valve with electrical actuator Series 8E031; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Medium temperature -20...+160°C; DN 100mm; Pressure range 0-16bar; Length 217mm; Operating time 27s; Voltage 100-240VAC

Kugelhahn mit Elektroantrieb Serie 8E031
Kugelhahn mit Elektroantrieb Serie 8E031
Intrastat No.: 84818081
Country of origin: Italy
Weight: 28.32 Kg
Short Itemnumber: 8E0310044
https://www.stasto.si/web/image/product.template/76173/image_1920?unique=8bc9da3

Ball valve with electrical actuator Series 8E031; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Medium temperature -20...+160°C; DN 100mm; Pressure range 0-16bar; Length 217mm; Operating time 27s; Voltage 100-240VAC

2.473,70 € 2473.7 EUR 2.473,70 €

cena na zahtevo

excl. tax
  • Butt weld ends
  • DN
  • Length
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16 bar
DN 100 mm
Length 217 mm
Operating time 27 s
All specifications (6)
Documents
Data sheets, drawings and CAD files
Pressure range 0...16 bar
DN 100 mm
Length 217 mm
Operating time 27 s
Voltage 100-240VAC
Butt weld ends 100 mm

8E031004-4"

Documents

3 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Danish / Dansk
ZIP

Data Sheets

1

CAD / 3D

1
German / Deutsch
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Greek / Ελληνικά
ZIP

Data Sheets

1

CAD / 3D

1
English
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Spanish / Español
ZIP

Data Sheets

1

CAD / 3D

1
Finnish / Suomi
ZIP

Data Sheets

1

CAD / 3D

1
French / Français
ZIP

Data Sheets

1

CAD / 3D

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Italian / Italiano
ZIP

Data Sheets

1

CAD / 3D

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1

CAD / 3D

1
Dutch / Nederlands
ZIP

Data Sheets

1

CAD / 3D

1
Polish / Język polski
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Romanian / română
ZIP

Data Sheets

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Swedish / Svenska
ZIP

Data Sheets

1

CAD / 3D

1
Ball valve made of stainless steel 712000-100
712000-100 x 1.0 Pcs
Ball valve made of stainless steel 712000-100
Ball valve made of stainless steel Series 712000; Full bore; Three-parts type; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Medium temperature -20...+160°C; Nominal diameter 100mm; Pressure range 0-16bar; Length 217mm
Electrical actuator VB190-H
VB190-H x 1.0 Pcs
Electrical actuator VB190-H
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 190Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 100-240VAC; Protection class IP67
RI3004 x 1.0 Pcs
RI3004
Mounting bracket For Ball valve; F10/F07-F10; Bolt 17-18
Accessory Products
Ball valve made of stainless steel 712000-100
712000-100
Ball valve made of stainless steel 712000-100
Butt weld ends
100 mm
DN
100 mm
Pressure range
0...16 bar
