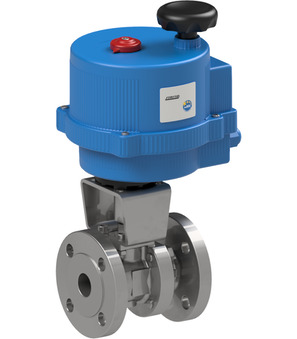

Flanged ball valve with electrical actuator 8E054002-100

Flanged ball valve with electrical actuator 8E054002-100

Flanged ball valve with electrical actuator Series 8E054; Length According to EN558−1R27; Body Zinc plated steel; Ball 1.4301; Seals PTFE/Graphoil/FKM; Medium temperature -10...+160°C; DN 100mm; Pressure range 0-16bar; Flange PN16; Length 190mm; Operating time 27s; Voltage 24VAC/DC

Flanschkugelhahn mit Elektroantrieb Serie 8E054
Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 33.49 Kg
Short Itemnumber: 8E054002100
https://www.stasto.si/web/image/product.template/76244/image_1920?unique=8bc9da3

Flanged ball valve with electrical actuator Series 8E054; Length According to EN558−1R27; Body Zinc plated steel; Ball 1.4301; Seals PTFE/Graphoil/FKM; Medium temperature -10...+160°C; DN 100mm; Pressure range 0-16bar; Flange PN16; Length 190mm; Operating time 27s; Voltage 24VAC/DC

2.051,10 € 2051.1 EUR 2.051,10 €

cena na zahtevo

excl. tax
  • DN
  • Length
  • Flange
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16 bar
DN 100 mm
Flange PN16
Length 190 mm
All specifications (6)
Documents
Data sheets, drawings and CAD files
Pressure range 0...16 bar
DN 100 mm
Flange PN16
Length 190 mm
Operating time 27 s
Voltage 24VAC/DC

8E054002-100

Documents

2 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1

CAD / 3D

1
Danish / Dansk
ZIP

Data Sheets

1

CAD / 3D

1
German / Deutsch
ZIP

Data Sheets

1

CAD / 3D

1
Greek / Ελληνικά
ZIP

Data Sheets

1

CAD / 3D

1
English
ZIP

Data Sheets

1

CAD / 3D

1
Spanish / Español
ZIP

Data Sheets

1

CAD / 3D

1
Finnish / Suomi
ZIP

Data Sheets

1

CAD / 3D

1
French / Français
ZIP

Data Sheets

1

CAD / 3D

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Data Sheets

1

CAD / 3D

1
Italian / Italiano
ZIP

Data Sheets

1

CAD / 3D

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1

CAD / 3D

1
Dutch / Nederlands
ZIP

Data Sheets

1

CAD / 3D

1
Polish / Język polski
ZIP

Data Sheets

1

CAD / 3D

1
Romanian / română
ZIP

Data Sheets

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Data Sheets

1

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

CAD / 3D

1
Swedish / Svenska
ZIP

Data Sheets

1

CAD / 3D

1
Flanged ball valve 760001-100
760001-100 x 1.0 Pcs
Flanged ball valve 760001-100
Flanged ball valve Series 760001; ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1R27; Full bore; Body Zinc plated steel; Ball 1.4301; Seals PTFE/Graphoil/FKM; Medium temperature -10...+160°C; With locking device; Nominal diameter 100mm; Pressure range 0-16bar; Flange PN16; Length 190mm
Electrical actuator VB190-L
VB190-L x 1.0 Pcs
Electrical actuator VB190-L
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 190Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 24VAC/DC; Protection class IP67
RI3552 x 1.0 Pcs
RI3552
Mounting bracket; F10/F07-F10; Bolt 17-18
