Knife gate valve with double acting actuator A1N2H2-5-200-2EI-B

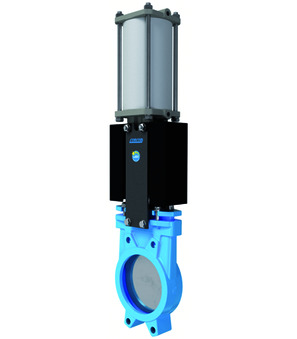

Knife gate valve with double acting actuator A1N2H2-5-200-2EI-B

Knife gate valve with double acting actuator Series A1N2H2-5-2EM-B; Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; Incl. 2 inductive limit switches OPEN/CLOSED; DN 200mm; Length 60mm; Pressure range 0…8bar

Intrastat No.: 84818061
Country of origin: Spain Made in Europe
Weight: 34.05 Kg
Short Itemnumber: A1N2H252002EIB
https://www.stasto.si/web/image/product.template/154950/image_1920?unique=c2516cc

knife gate valve with double acting actuator series A1N2H2-5-2EM-B; wafer type; body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 304; soft sealed EPDM; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; unidirectional sealed; control pressure 5,5...8bar; medium temperature -5...+90°C; incl. 2 inductive limit switches OPEN/CLOSED; DN 200mm; length 60mm; pressure range 0…8bar

999.999,00 € 999999.0 EUR 999.999,00 €

On request

  • DN
  • Length
  • Pressure range
  • Pressure range

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...10 bar
Pressure range 0...8 bar
DN 200 mm
Length 60 mm
Pressure range 0...10 bar
Pressure range 0...8 bar
DN 200 mm
Length 60 mm
No spare parts are available for this product.
