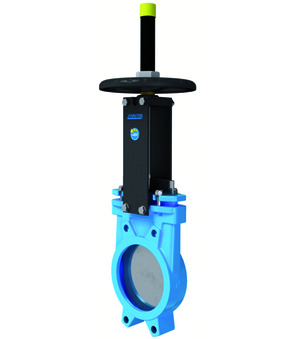

Knife gate valve with handwheel Series A1V; Wafer type; Rising stem; Body Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed NBR; Packing PTFE-Synthetic; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Medium temperature -10...+90°C; DN 80mm; Length 50mm; Pressure range 0...10bar
Country of origin: Spain
Weight: 10.63 Kg
Short Itemnumber: A1V2H5B80B
knife gate valve with handwheel series A1V; wafer type; rising stem; body body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 304; soft sealed NBR; packing PTFE-synthetic; screws stainless steel; nominal flange pressure PN10; unidirectional sealed; medium temperature -10...+90°C; DN 80mm; length 50mm; pressure range 0...10bar
Technical specifications
| Pressure range | 0...10 bar |
|---|---|
| DN | 80 mm |
| Length | 50 mm |
| Pressure range | 0...10 bar |
| DN | 80 mm |
| Length | 50 mm |
A1V2H5-B-80-B
