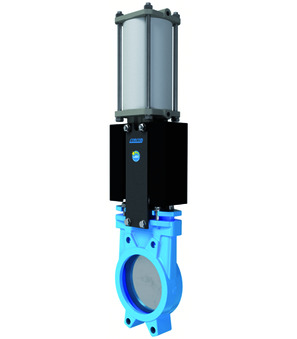

Knife gate valve with double acting actuator Series AB1N; Wafer type; Body Cast iron EN-GJL-250; Gate 1.4301; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Sealed in both directions; Control pressure 5,5...8bar; Prepared for 2 inductive limit switches M18; Soft sealed EPDM; DN 150mm; Length 60mm; Pressure range 0...10bar; Temperature range -5...+90°C
Country of origin: Spain
Weight: 20.55 Kg
Short Itemnumber: AB1N2H25150PIB
knife gate valve with double acting actuator series AB1N; wafer type; body cast iron EN-GJL-250; gate AISI 304; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; sealed in both directions; control pressure 5,5...8bar; prepared for 2 inductive limit switches M18; soft sealed EPDM; DN 150mm; length 60mm; pressure range 0...10bar; temperature range -5...+90°C
Technical specifications
| Pressure range | 0...10 bar |
|---|---|
| Soft sealed | EPDM |
| DN | 150 mm |
| Length | 60 mm |
| Pressure range | 0...10 bar |
| Soft sealed | EPDM |
| DN | 150 mm |
| Length | 60 mm |
| Medium temperature | -5...+90 °C |
