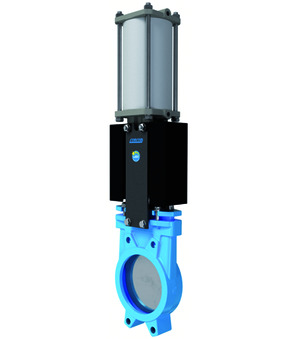

Knife gate valve with double acting actuator AB1N2H2-5-500-B

Knife gate valve with double acting actuator AB1N2H2-5-500-B

Knife gate valve with double acting actuator Series AB1N; Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Sealed in both directions; Control pressure 5,5...8bar; Medium temperature -5...+90°C; DN 500mm; Length 110mm; Pressure range 0...3bar

Intrastat No.: 84818061
Country of origin: Spain Made in Europe
Weight: 35.63 Kg
Short Itemnumber: AB1N2H25500B
https://www.stasto.si/web/image/product.template/54566/image_1920?unique=3a74ded

Knife gate valve with double acting actuator Series AB1N; Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Sealed in both directions; Control pressure 5,5...8bar; Medium temperature -5...+90°C; DN 500mm; Length 110mm; Pressure range 0...3bar

999.999,00 € 999999.0 EUR 999.999,00 €

On request

  • DN
  • Length
  • Pressure range

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...3 bar
DN 500 mm
Length 110 mm
Documents
Data sheets, drawings and CAD files
Pressure range 0...3 bar
DN 500 mm
Length 110 mm

AB1N2H2-5-500-B

Documents

1 Documents 2 Languages

German / Deutsch
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
No spare parts are available for this product.
