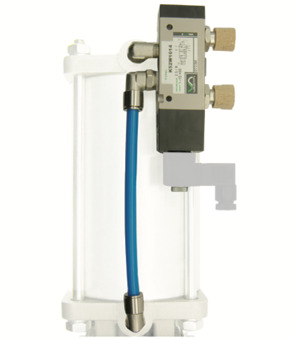

Mounted pilot valve ABS43

Mounted pilot valve ABS43

Mounted pilot valve Series ABS; Suitable for Pneumatically operated knife gate valves; 5/2-way solenoid valve; Flow control valves; Silencer; Mounted at cylinder; Standard coil C001; Connector size 22mm; 5/2-Wege-Magnetventil (E52W1SM12); DN gate valve 450-500mm

Aufgebautes Steuerventil Serie ABS

Aufgebautes Steuerventil Serie ABS

Intrastat No.: 84812090
Country of origin: Italy
Weight: 1.556 Kg
Short Itemnumber: ABS43

Mounted pilot valve Series ABS; Suitable for Pneumatically operated knife gate valves; 5/2-way solenoid valve; Flow control valves; Silencer; Mounted at cylinder; Standard coil C001; Connector size 22mm; 5/2-Wege-Magnetventil (E52W1SM12); DN gate valve 450-500mm

339,70 € 339.7 EUR 339,70 €

excl. tax

DN
- 450;500 mm
Connector size
- 22 mm
Design
- -
Voltage
- -
Coil
- C001
Brand
- STASTO
Electrical connection
- -

This combination does not exist.

Availability:

See availability

Technical specifications

DN	450;500 mm
Brand	STASTO

Data sheets, drawings and CAD files

DN	450;500 mm
Brand	STASTO

ABS43

Documents

1 Documents

Language-independent

CAD / 3D

1

STP
CADSTEP · ABS43
CAD-STEP 2,2 MB Updated 27/09/2026

Download

5/2-way valve E52W1SM12

E52W1SM12 x 1.0 Pcs

5/2-way valve E52W1SM12

5/2-way valve Series E5.; Pilot-operated; Actuation Electrical/spring; Standard coil C001; Connector size 22mm; Connection 1/2"; Nominal diameter 15mm; Pressure range 2,5-10bar; Flow rate 3500Nl/min

Swivel male elbow PI16C-12-12-N-T-360

PI16C-12-12-N-T-360 x 2.0 Pcs

Swivel male elbow PI16C-12-12-N-T-360

Swivel male elbow Series PI16C-360; Nickel plated brass; Conical thread; Diameter 12mm; Thread 1/2"

Elbow adapter Male thread TH61C-12-N

TH61C-12-N x 1.0 Pcs

Elbow adapter Male thread TH61C-12-N

Elbow adapter Male thread Series TH61; Nickel plated brass; Thread R 1/2"; Thread konisch

Throttle RSS-1/2"

RSS-1/2" x 2.0 Pcs

Throttle RSS-1/2"

Throttle Series RSS; Silencer; Self blocking; Connection 1/2"; DN 12,5mm

PA-12/10-BU-1

PA-12/10-BU-1 x 1.0 m

PA-12/10-BU-1

Plastic hose; Material Polyamide; Multiplier for operating pressure 30°C = 0,87 / 80°C = 0,43; Vacuum -0,87bar; Outside diameter 12mm; Inside diameter 10mm; Operating pressure at 23°C 13bar; Colour Blue

Detachable hex nipple Female thread/Male thread TH59-12-B-R-YA

TH59-12-B-R-YA x 1.0 Pcs

Detachable hex nipple Female thread/Male thread TH59-12-B-R-YA

Detachable hex nipple Female thread/Male thread Series TH59; Brass; Cylindrical thread; Thread 1/2"; Seal O-Ring-Abdichtung

Elbow connector PI17-12-N

PI17-12-N x 2.0 Pcs

Elbow connector PI17-12-N

Elbow connector Series PI17; Nickel plated brass; Diameter 12mm

Accessory Products

EPC01200

Design: ATEX

Voltage: 12VDC

EPC02400

Design: ATEX

Voltage: 24VDC

EPC02450

Design: ATEX

Voltage: 24V/50-60Hz

EPC11050

Design: ATEX

Voltage: 110V/50-60Hz

EPC23050

Design: ATEX

Voltage: 230V/50-60Hz

Plastic hose PA-12/10-BK-0100

PA-12/10-BK-0100

Plastic hose PA-12/10-BK-0100

Outside diameter: 12 mm

Inside diameter: 10 mm

Supply length: Bundle (100m)

Brand: STASTO

Plastic hose PA-12/10-BK-1

Plastic hose PA-12/10-BK-1

Outside diameter: 12 mm

Inside diameter: 10 mm

Supply length: Material sold by the meter

Brand: STASTO

Plastic hose PA-12/10-NA-0100

PA-12/10-NA-0100

Plastic hose PA-12/10-NA-0100

Outside diameter: 12 mm

Inside diameter: 10 mm

Supply length: Bundle (100m)

Brand: STASTO

Plastic hose PA-12/10-NA-1

Plastic hose PA-12/10-NA-1

Outside diameter: 12 mm

Inside diameter: 10 mm

Supply length: Material sold by the meter

Brand: STASTO

Plastic hose PA-12/9-BK-0100

PA-12/9-BK-0100

Plastic hose PA-12/9-BK-0100

Outside diameter: 12 mm

Inside diameter: 9 mm

Supply length: Bundle (100m)

Brand: STASTO

Plastic hose PA-12/9-BK-1

Plastic hose PA-12/9-BK-1

Outside diameter: 12 mm

Inside diameter: 9 mm

Supply length: Material sold by the meter

Brand: STASTO

Plastic hose PA-12/9-BU-0100

PA-12/9-BU-0100

Plastic hose PA-12/9-BU-0100

Outside diameter: 12 mm

Inside diameter: 9 mm

Supply length: Bundle (100m)

Brand: STASTO

Plastic hose PA-12/9-BU-1

Plastic hose PA-12/9-BU-1

Outside diameter: 12 mm

Inside diameter: 9 mm

Supply length: Material sold by the meter

Brand: STASTO

Plastic hose PA-12/9-NA-0100

PA-12/9-NA-0100

Plastic hose PA-12/9-NA-0100

Outside diameter: 12 mm

Inside diameter: 9 mm

Supply length: Bundle (100m)

Brand: STASTO

Plastic hose PA-12/9-NA-1

Plastic hose PA-12/9-NA-1

Outside diameter: 12 mm

Inside diameter: 9 mm

Supply length: Material sold by the meter

Brand: STASTO

Plastic hose PA-12/9-RD-0100

PA-12/9-RD-0100

Plastic hose PA-12/9-RD-0100

Outside diameter: 12 mm

Inside diameter: 9 mm

Supply length: Bundle (100m)

Brand: STASTO

Plastic hose PA-12/9-RD-1

Plastic hose PA-12/9-RD-1

Outside diameter: 12 mm

Inside diameter: 9 mm

Supply length: Material sold by the meter

Brand: STASTO

Plastic hose PA-12/9-YE-0100

PA-12/9-YE-0100

Plastic hose PA-12/9-YE-0100

Outside diameter: 12 mm

Inside diameter: 9 mm

Supply length: Bundle (100m)

Brand: STASTO

Plastic hose PA-12/9-YE-1

Plastic hose PA-12/9-YE-1

Outside diameter: 12 mm

Inside diameter: 9 mm

Supply length: Material sold by the meter

Brand: STASTO

Straight male stud fitting PI12-06-12-N-0

Straight male stud fitting PI12-06-12-N-0

Diameter: 6 mm

Male thread: G 1/2"

Straight male stud fitting PI12-08-12-N-0

Straight male stud fitting PI12-08-12-N-0

Diameter: 8 mm

Male thread: G 1/2"

Straight male stud fitting PI12-10-12-N-0

Straight male stud fitting PI12-10-12-N-0

Diameter: 10 mm

Male thread: G 1/2"

Straight male stud fitting PI12-12-12-N-0

Straight male stud fitting PI12-12-12-N-0

Diameter: 12 mm

Male thread: G 1/2"

Straight male stud fitting PI12-14-12-N-0

Straight male stud fitting PI12-14-12-N-0

Diameter: 14 mm

Male thread: G 1/2"

Straight male stud fitting PI12-16-12-N-0-YA

PI12-16-12-N-0-YA

Straight male stud fitting PI12-16-12-N-0-YA

Diameter: 16 mm

Male thread: G 1/2"

Swivel male elbow PI16-06-12-N-0-360

PI16-06-12-N-0-360

Swivel male elbow PI16-06-12-N-0-360

Diameter: 6 mm

Male thread: G 1/2"

Swivel male elbow PI16-08-12-N-0-360

PI16-08-12-N-0-360

Swivel male elbow PI16-08-12-N-0-360

Diameter: 8 mm

Male thread: G 1/2"

Swivel male elbow PI16-10-12-N-0-360

PI16-10-12-N-0-360

Swivel male elbow PI16-10-12-N-0-360

Diameter: 10 mm

Male thread: G 1/2"

Swivel male elbow PI16-12-12-N-0-360

PI16-12-12-N-0-360

Swivel male elbow PI16-12-12-N-0-360

Diameter: 12 mm

Male thread: G 1/2"

Swivel male elbow PI16-14-12-N-0-360

PI16-14-12-N-0-360

Swivel male elbow PI16-14-12-N-0-360

Diameter: 14 mm

Male thread: G 1/2"

Swivel male elbow PI16-16-12-N-0-360

PI16-16-12-N-0-360

Swivel male elbow PI16-16-12-N-0-360

Diameter: 16 mm

Male thread: G 1/2"

PI16-16-12-Z-0-360

PI16-16-12-Z-0-360

Brand: STASTO

Silencer SLN-M12-RB

Silencer SLN-M12-RB

Connection: 1/2"

Brand: STASTO
