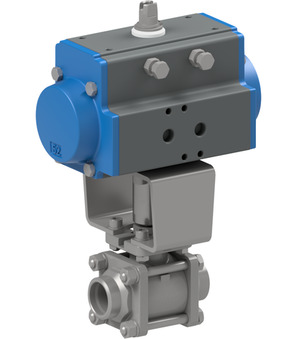

Ball valve with pneumatic actuator BA034-15-D0B-A-EB0X14

Ball valve with pneumatic actuator BA034-15-D0B-A-EB0X14

BA034-15-D0B-A
Ball valve with pneumatic actuator Series BA034-S0-A; ATEX II 2 G/D; TA-Luft; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Double acting actuator ATEX II 2G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 15mm; Pressure range 0...64bar; Length 65mm; Actuator PAD052
EB0X14
Mounted limit switch box; IP65; Inductive dual proximity switch, Suitable for Actuators PAD/PAS052-270; Switching capacity 8VDC/3mA; Switch type P&F NCN3-F25F-N4; Function NC contact-Namur - ATEX; Material of case Plastic

Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 2.111 Kg
Short Itemnumber: BA03415D0BAEB0X14
https://www.stasto.si/web/image/product.template/213266/image_1920?unique=38cb979

BA034-15-D0B-A
ball valve with pneumatic actuator series BA034-S0-A; ATEX II 2 G/D; TA-Luft; butt weld ends; body, ball AISI 316; seals PTFE-reinforced/FKM; double acting actuator ATEX II 2G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 15mm; pressure range 0...64bar; length 65mm; actuator PAD052
EB0X14
mounted limit switch box; IP65; inductive dual proximity switch, suitable for actuators PAD/PAS052-270; switching capacity 8VDC/3mA; switch type P&F NCN3-F25F-N4; function NC contact-Namur - ATEX; material of case plastic

999.999,00 € 999999.0 EUR 999.999,00 €

On request

  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Function
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...64 bar
DN 15 mm
Length 65 mm
Design ATEX
All specifications (7)
Documents
Data sheets, drawings and CAD files
Pressure range 0...64 bar
DN 15 mm
Length 65 mm
Design ATEX
Switch type P&F NCN3-F25F-N4
Function NC-Namur - ATEX
Material of case Plastic

BA034-15-D0B-A-EB0X14
