BA034-25-S0-3C

BA034-25-S0-3C

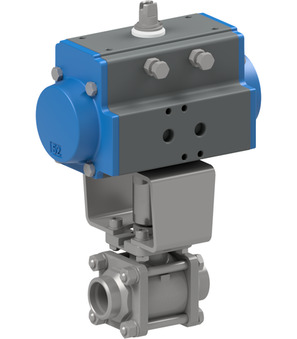

Ball valve with pneumatic actuator Series BA034-S0-3C; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 25mm; Pressure range 0-40bar; Length 92mm; Actuator PAS0635; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness

Intrastat No.: 84818081
Country of origin: Italy
Weight: 3.56 Kg
Short Itemnumber: BA03425S03C
https://www.stasto.si/web/image/product.template/192341/image_1920?unique=87fb56f

ball valve with pneumatic actuator series BA034-S0-3C; butt weld ends; body, ball AISI 316; seals PTFE-reinforced/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 25mm; pressure range 0-40bar; length 92mm; actuator PAS0635; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness

477,40 € 477.4 EUR 477,40 €

cena na zahtevo

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0-40bar
Brand STASTO
Pressure range 0-40bar
Brand STASTO
Ball valve made of stainless steel BA034-25-L-3C
BA034-25-L-3C x 1.0 Pcs
Ball valve made of stainless steel BA034-25-L-3C
Ball valve made of stainless steel Series BA034-L-3C; Full bore; Three-parts type; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Medium temperature -20...+160°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness; Nominal diameter 25mm; Pressure range 0…40bar; Length 92mm
Pneumatic actuator PAS0635
PAS0635 x 1.0 Pcs
Pneumatic actuator PAS0635
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 10,6Nm
RI3033 x 1.0 Pcs
RI3033
Mounting bracket; F05/F03-F04; Bolt 14-8
