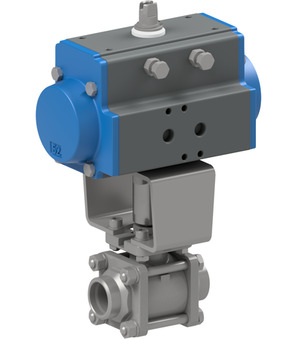

Ball valve with pneumatic actuator BA034-32-D0-A-ABS51-EPC02400-1-EB0X05

Ball valve with pneumatic actuator BA034-32-D0-A-ABS51-EPC02400-1-EB0X05

BA034-32-D0-A
ball valve with pneumatic actuator series BA034-D0-A; ATEX II 2 G/D; TA-Luft; butt weld ends; body, ball AISI 316; seals PTFE-reinforced/FKM; double acting actuator ATEX II 2G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 32mm; pressure range 0...25bar; length 106mm; actuator PAD052
ABS51
mounted pilot valve series ABS; NAMUR; silencer; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); actuator PAD052-270
EPC02400-1
mounted coil type EPC; ATEX- II 2G Ex mb IIC T5 Gb / II 2D Ex tb IIIC T95°C IP66 Db; cable length 3m; voltage 24VDC
EB0X05
mounted limit switch box; IP65; 2 micro switches; suitable for actuators PAD/PAS052-270; switching capacity 4A/250VAC-1A/24VDC; switch type Crouzet 831391 - ATEX; contact material Silber-Nickel; material of case plastic

Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 4.362 Kg
Short Itemnumber: BA03432D0AABS51EPC024001EB0X05
https://www.stasto.si/web/image/product.template/237033/image_1920?unique=f57c3ce

BA034-32-D0-A
ball valve with pneumatic actuator series BA034-D0-A; ATEX II 2 G/D; TA-Luft; butt weld ends; body, ball AISI 316; seals PTFE-reinforced/FKM; double acting actuator ATEX II 2G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 32mm; pressure range 0...25bar; length 106mm; actuator PAD052
ABS51
mounted pilot valve series ABS; NAMUR; silencer; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); actuator PAD052-270
EPC02400-1
mounted coil type EPC; ATEX- II 2G Ex mb IIC T5 Gb / II 2D Ex tb IIIC T95°C IP66 Db; cable length 3m; voltage 24VDC
EB0X05
mounted limit switch box; IP65; 2 micro switches; suitable for actuators PAD/PAS052-270; switching capacity 4A/250VAC-1A/24VDC; switch type Crouzet 831391 - ATEX; contact material Silber-Nickel; material of case plastic

999.999,00 € 999999.0 EUR 999.999,00 €

On request

  • Butt weld ends
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Function
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...25 bar
DN 32 mm
Length 106 mm
Voltage 24VDC
All specifications (8)
Documents
Data sheets, drawings and CAD files
Pressure range 0...25 bar
DN 32 mm
Length 106 mm
Voltage 24VDC
Design ATEX
Switch type Crouzet 831391 - ATEX
Material of case Plastic
Contact material Silver-nickel

BA034-32-D0-A-ABS51-EPC02400-1-EB0X05

Documents

8 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

3

Declarations of Conformity

2

CAD / 3D

2
Danish / Dansk
ZIP

Data Sheets

3

CAD / 3D

2
German / Deutsch
ZIP

Data Sheets

4

Declarations of Conformity

2

CAD / 3D

2
Greek / Ελληνικά
ZIP

Data Sheets

3

CAD / 3D

2
English
ZIP

Data Sheets

4

Declarations of Conformity

2

CAD / 3D

2
Spanish / Español
ZIP

Data Sheets

3

CAD / 3D

2
Finnish / Suomi
ZIP

Data Sheets

3

CAD / 3D

2
French / Français
ZIP

Data Sheets

3

CAD / 3D

2
Croatian / hrvatski jezik
ZIP

Data Sheets

3

CAD / 3D

2
Hungarian / Magyar
ZIP

Data Sheets

3

Declarations of Conformity

2

CAD / 3D

2
Italian / Italiano
ZIP

Data Sheets

3

CAD / 3D

2
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

3

CAD / 3D

2
Dutch / Nederlands
ZIP

Data Sheets

3

CAD / 3D

2
Polish / Język polski
ZIP

Data Sheets

3

Declarations of Conformity

2

CAD / 3D

2
Romanian / română
ZIP

Data Sheets

3

CAD / 3D

2
Slovenian / slovenščina
ZIP

Data Sheets

3

Declarations of Conformity

2

CAD / 3D

2
Serbian (Latin) / srpski
ZIP

Data Sheets

4

Declarations of Conformity

2

CAD / 3D

2
Swedish / Svenska
ZIP

Data Sheets

3

CAD / 3D

2
Ball valve with pneumatic actuator BA034-32-D0-A
BA034-32-D0-A x 1.0 Pcs
Ball valve with pneumatic actuator BA034-32-D0-A
ball valve with pneumatic actuator series BA034-S0-A; ATEX II 2 G/D; TA-Luft; butt weld ends; body, ball AISI 316; seals PTFE-reinforced/FKM; double acting actuator ATEX II 2G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 32mm; pressure range 0...25bar; length 106mm; actuator PAD052
Mounted pilot valve ABS51
ABS51 x 1.0 Pcs
Mounted pilot valve ABS51
Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD052-270
EPC02400-1
EPC02400-1 x 1.0 Pcs
EPC02400-1
Mounted coil Type EPC; ATEX- II 2G Ex mb IIC T5 Gb / II 2D Ex tb IIIC T95°C IP66 Db; Cable length 3m; Voltage 24VDC
EB0X05
EB0X05 x 1.0 Pcs
EB0X05
Mounted limit switch box; IP65; 2 Micro switches; Suitable for Actuators PAD/PAS052-270; Switching capacity 4A/250VAC-1A/24VDC; Switch type Crouzet 831391 - ATEX; Contact material Silber-Nickel; Material of case Plastic
