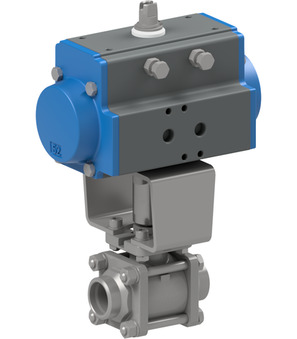

Ball valve with pneumatic actuator BA034-40-D0-01

Ball valve with pneumatic actuator BA034-40-D0-01

ball valve with pneumatic actuator; TA-Luft; butt weld ends; body, ball AISI 316; seals PTFE-reinforced/FKM; without dead space; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 40mm; pressure range 0...25bar; length 116mm; actuator PAD075

Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 2.18 Kg
Short Itemnumber: BA03440D001
https://www.stasto.si/web/image/product.template/220618/image_1920?unique=4bf1581

ball valve with pneumatic actuator; TA-Luft; butt weld ends; body, ball AISI 316; seals PTFE-reinforced/FKM; without dead space; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 40mm; pressure range 0...25bar; length 116mm; actuator PAD075

767,80 € 767.8 EUR 767,80 €

cena na zahtevo

excl. tax
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Function
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...25 bar
DN 50 mm
Length 136 mm
Pressure range 0...25 bar
DN 50 mm
Length 136 mm
Ball valve made of stainless steel BA034-40-L-01
BA034-40-L-01 x 1.0 Pcs
Ball valve made of stainless steel BA034-40-L-01
ball valve made of stainless steel series BA034-L; full bore; three-parts type; butt weld ends; body, ball AISI 316; seals PTFE-reinforced/FKM; without dead space; medium temperature -20...+160°C; nominal diameter 40mm; pressure range 0...25bar; length 116mm
Pneumatic actuator PAD063
PAD063 x 1.0 Pcs
Pneumatic actuator PAD063
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 36Nm
RI3031 x 1.0 Pcs
RI3031
Mounting bracket; F07/F05-F05; Bolt 14-10
