BA036-112-S0-02

BA036-112-S0-02

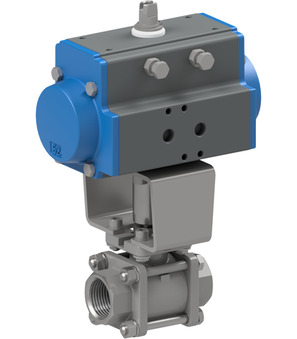

Ball valve with pneumatic actuator; Female thread; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+198°C; RP 11/2"; Nominal diameter 40mm; Pressure range 0-25bar; Length 116mm; Actuator PAS1005; Compensation hole at the inlet; NC

Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 10.03 Kg
Short Itemnumber: BA036112S002
https://www.stasto.si/web/image/product.template/136439/image_1920?unique=07bf1b6

ball valve with pneumatic actuator; female thread; body, ball AISI 316; seals PTFE-reinforced/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+198°C; RP 11/2"; nominal diameter 40mm; pressure range 0-25bar; length 116mm; actuator PAS1005; compensation hole at the inlet; NC

999.999,00 € 999999.0 EUR 999.999,00 €

On request

  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0-25bar
Brand STASTO
Pressure range 0-25bar
Brand STASTO
Ball valve made of stainless steel BA036-112-L-01
BA036-112-L-01 x 1.0 Pcs
Ball valve made of stainless steel BA036-112-L-01
Ball valve made of stainless steel Series BA036; For steam; Full bore; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Pressure range Steam 0...15bar; Medium temperature -20...+198°C; Compensation hole at the inlet; RP 11/2"; Nominal diameter 40mm; Length 116mm
Pneumatic actuator PAS1005
PAS1005 x 1.0 Pcs
Pneumatic actuator PAS1005
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 42,3Nm
RI3034 x 1.0 Pcs
RI3034
Mounting bracket; F07/F05-F05; Bolt 17-10
