BA040-100-D0-02

Name: BA040-100-D0-02
Brand: STASTO
SKU: BA040-100-D0-02
Price: 1329.5 EUR
Availability: InStock

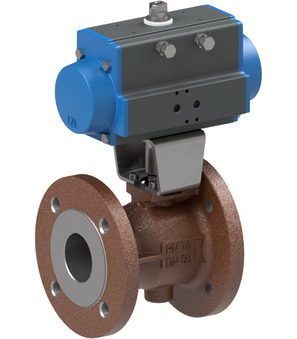

flanged ball valve with pneumatic actuator series BA040; flange PN16; body cast iron EN-GJL-250; ball AISI 304; seals PTFE/NBR; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+120°C; pressure range 0...16bar; nominal diameter 100mm; length 190mm; length EN558-1R14; larger actuator PAD125

Intrastat No.: 84818081
Country of origin: Italy
Weight: 35.91 Kg
Short Itemnumber: BA040100D002

1.329,50 € 1329.5 EUR 1.329,50 €

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

730003-100 x 1.0

Flanged ball valve 730003-100

Flanged ball valve Series 730003; Flange PN16, Full bore; Body Cast iron EN-GJL-250; Ball 1.4301; Seals PTFE/NBR; Pressure range 0...16bar; Medium temperature -10...+120°C; Nominal diameter 100mm; Length 190mm; Length EN558-1R14

Add to Cart

PAD125 x 1.0

Pneumatic actuator PAD125

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 125mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 327Nm

Add to Cart

RI3004 x 1.0
