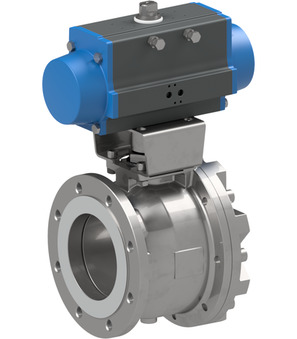

Flanged ball valve with pneumatic actuator BA048-125-S0

Name: Flanged ball valve with pneumatic actuator BA048-125-S0
Brand: STASTO
SKU: BA048-125-S0
Price: 4053.9 EUR
Availability: InStock

Flanged ball valve with pneumatic actuator Series BA048; Flange PN16; Body, Ball 1.4301; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 125mm; Length 196mm; Actuator PAS1605

Intrastat No.: 84818081
Country of origin: Italy
Weight: 69.38 Kg
Short Itemnumber: BA048125S0

flanged ball valve with pneumatic actuator series BA048; flange PN16; body, ball AISI 304; seals PTFE/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...16bar; nominal diameter 125mm; length 196mm; actuator PAS1605

4.053,90 € 4053.9 EUR 4.053,90 €

DN
- 125 mm
Length
- 196 mm
Pressure range
- 0...16 bar
Actuator
- PAS1605

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	125 mm
Length	196 mm
pressure
Pressure range	0...16 bar
characteristics
Actuator	PAS1605

BA048-125-L x 1.0

Flanged ball valve BA048-125-L

Flanged ball valve Series BA048-L; Flange PN16, Full bore; Body, Ball 1.4301; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -20...+160°C; Nominal diameter 125mm; Length 196mm

Add to Cart

PAS1605 x 1.0

Pneumatic actuator PAS1605

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 160mm; Flange ISO5211 F10/F12; Female square 27mm; Torque at 5,5bar 202Nm

Add to Cart

RI3037 x 1.0
