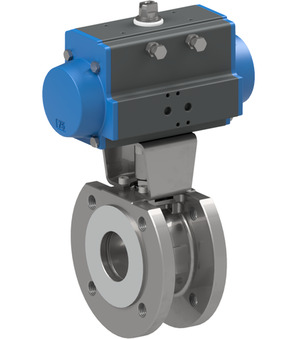

Flanged ball valve with pneumatic actuator BA049-150-D0-A-EB0X14
Ball valve with pneumatic actuator BA033-20-D2
Ball valve with pneumatic actuator BA033-20-D2
746,00 €
746,00 €
Ball valve with pneumatic actuator BA033-10-S0-A-ABS53-C001-03-C002-31-LV-2
Ball valve with pneumatic actuator BA033-10-S0-A-ABS53-C001-03-C002-31-LV-2
685,90 €
685,90 €

Flanged ball valve with pneumatic actuator BA049-150-D0-A-EB0X14

BA049-150-D0-A
Flanged ball valve with pneumatic actuator Series BA049-D0-A; ATEX II 2 G/D; Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 150mm; Length 232mm; Actuator PAD125
EB0X14
Mounted limit switch box; IP65; Inductive dual proximity switch, Suitable for Actuators PAD/PAS052-270; Switching capacity 8VDC/3mA; Switch type P&F NCN3-F25F-N4; Function NC contact-Namur - ATEX; Material of case Plastic
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz

Intrastat No.: 84818081
Country of origin: Italy
Weight: 76.508 Kg
Short Itemnumber:BA049150D0AEB0X14
https://www.stasto.si/web/image/product.template/243157/image_1920?unique=a82729e

999.999,00 € 999999.0 EUR 999.999,00 €

On request

  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Function
  • Connector size
  • Switch type
  • Connector
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Material of case
  • Coil
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
Attachment interface VDI/VDE 3845 80x30x20
Attachment interface 2 VDI/VDE 3845 80x30x30
DN 150 mm
Length 232 mm
function
Function NC-Namur - ATEX
Designs
Switch type P&F NCN3-F25F-N4
design
Design ATEX
Electrical key figures
Switching capacity 8VDC/3mA
pressure
Pressure range 0...16 bar
materials
Material of case Plastic
characteristics
Actuator PAD125

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Flanged ball valve with pneumatic actuator Series BA049-D0_EN.pdf
Download

ZIP
Datové listy
1
Datový list_kulový kohout - přírubový, s otočným pneumatickým pohonem série BA049-D0_CS.pdf
Download

ZIP
Data Sheets
1
Datablad_Flangekugleventil med pneumatisk drejedrev Serie BA049-D0_DA_DK.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Flanschkugelhahn mit Druckluftdrehantrieb Serie BA049-D0_DE.pdf
Download

ZIP
Data Sheets
1
Δελτίο δεδομένων_Φλαντζωτή σφαιρική βάνα με πνευματικό περιστροφικό ενεργοποιητή Σειρά BA049-D0_EL_GR.pdf
Download

ZIP
Data Sheets
1
Ficha técnica_Válvula de bola con bridas con actuador neumático rotativo Serie BA049-D0_ES.pdf
Download

ZIP
Data Sheets
1
Tietolehti_Laippakuulaventtiili paineilmatoimisella kääntötoimilaitteella Sarja BA049-D0_FI.pdf
Download

ZIP
Data Sheets
1
Fiche technique_Vanne à boisseau sphérique à brides avec actionneur pneumatique rotatif Série BA049-D0_FR.pdf
Download

ZIP
Data Sheets
1
Podatkovni list_Prirubnički kuglasti ventil s pneumatskim rotacijskim pogonom Serija BA049-D0_HR.pdf
Download

ZIP
Adatlapok
1
Adatlap_pneumatikus forgatóhengerrel működtetett karimás gömbcsap sorozat BA049-D0_HU.pdf
Download

ZIP
Data Sheets
1
Scheda tecnica_Valvola a sfera flangiata con attuatore pneumatico rotativo Serie BA049-D0_IT.pdf
Download

ZIP
Data Sheets
1
Datablad_Flenset kuleventil med pneumatisk dreieaktuator Serie BA049-D0_NB_NO.pdf
Download

ZIP
Data Sheets
1
Datasheet_Flenskogelkraan met pneumatische draaiaandrijving Serie BA049-D0_NL.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_zawór kulowy kołnierzowy z napędem pneumatycznym Seria BA049-D0_PL.pdf
Download

ZIP
Data Sheets
1
Fișă de date_Robinet cu bilă cu flanșă cu actuator rotativ pneumatic serie BA049-D0_RO.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Prirobnična krogelna pipa s pnevmatskim rotacijskim pogonom serija BA049-D0_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_kuglasti ventil sa prirubnicom i pneumatskim aktuatorom serije BA049-D0_SRLATIN.pdf
Download

ZIP
Data Sheets
1
Datablad_Flänskulventil med pneumatiskt vriddon Serie BA049-D0_SV.pdf
Download
No spare parts are available for this product.
