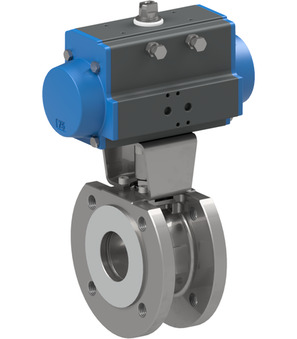

BA049-50-D0-3C

Flanged ball valve with pneumatic actuator; Series BA049-D0-3C Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 50mm; Length 82mm; Actuator PAD075; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness

Intrastat No.: 84818081
Country of origin: Italy
Weight: 10.01 Kg
Short Itemnumber:BA04950D03C

flanged ball valve with pneumatic actuator; series BA049-D0-3C flange PN16; body, ball AISI 316; seals PTFE/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...16bar; nominal diameter 50mm; length 82mm; actuator PAD075; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness

1.021,90 € 1021.9 EUR 1.021,90 €

Design
- ATEX

This combination does not exist.

Availability:

Add to Cart

Specifications
Spare Parts

Design

ATEX

BA049-50-L-3C x 1.0

Flanged ball valve BA049-50-L-3C

Flanged ball valve Series BA049; Flange PN16, Full bore; Body, Ball 1.4401; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -20...+160°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness; Nominal diameter 50mm; Length 82mm

Add to Cart

PAD075 x 1.0

Pneumatic actuator PAD075

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 75mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 66Nm

Add to Cart

RI3009 x 1.0
