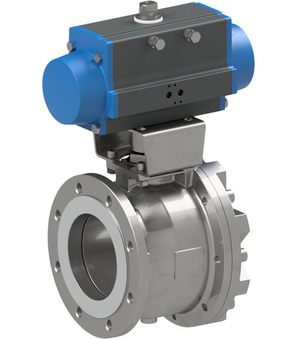

Ball valve with pneumatic actuator BA050-150-S0

Ball valve with pneumatic actuator BA050-150-S0

Ball valve with pneumatic actuator Series BA050; For steam; Flange PN16; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+198°C; Pressure range Steam 0...15bar; Nominal diameter 150mm; Length 232mm; Actuator PAS2005

Intrastat No.: 84818081
Country of origin: Italy
Weight: 119.64 Kg
Short Itemnumber: BA050150S0
https://www.stasto.si/web/image/product.template/143058/image_1920?unique=1a33902

ball valve with pneumatic actuator series BA050; for steam; flange PN16; body, ball AISI 316; seals PTFE-reinforced/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+198°C; pressure range steam 0...15bar; nominal diameter 150mm; length 232mm; actuator PAS2005

7.379,70 € 7379.7 EUR 7.379,70 €

cena na zahtevo

excl. tax
  • Connection
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Function
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Contact material
  • Material of case
  • Coil
  • Actuator
  • Max. inlet pressure
  • Filter element
  • Flow rate at 6.3bar/Δp=1bar

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range Steam 0...15bar
DN 150 mm
Length 232 mm
Documents
Data sheets, drawings and CAD files
Pressure range Steam 0...15bar
DN 150 mm
Length 232 mm

BA050-150-S0

Documents

1 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1
Danish / Dansk
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
Greek / Ελληνικά
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Spanish / Español
ZIP

Data Sheets

1
Finnish / Suomi
ZIP

Data Sheets

1
French / Français
ZIP

Data Sheets

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Italian / Italiano
ZIP

Data Sheets

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1
Dutch / Nederlands
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Romanian / română
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
Swedish / Svenska
ZIP

Data Sheets

1
Flanged ball valve BA050-150-L-A
BA050-150-L-A x 1.0 Pcs
Flanged ball valve BA050-150-L-A
Flanged ball valve Series BA050-L-A; For steam; ATEX II 2 G/D; Fire-safe; TA-Luft; Flange PN16; Full bore; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Pressure range Steam 0...15bar; Medium temperature -20...+198°C; Nominal diameter 150mm; Length 232mm
Pneumatic actuator PAS2005
PAS2005 x 1.0 Pcs
Pneumatic actuator PAS2005
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 200mm; Flange ISO5211 F14; Female square 36mm; Torque at 5,5bar 406Nm
RI3040 x 1.0 Pcs
RI3040
Mounting bracket F12-F14/F10; 36-30
