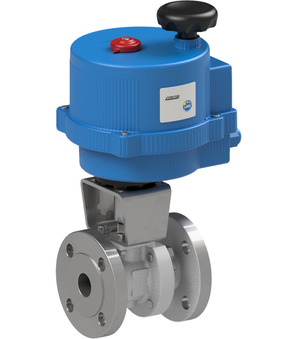

Flanged ball valve with electrical actuator BA051-65-PH

Name: Flanged ball valve with electrical actuator BA051-65-PH
Brand: STASTO
SKU: BA051-65-PH
Price: 2349.0 EUR
Availability: InStock

flanged ball valve with electrical actuator series BA051; length according to EN558−1R27; body, ball AISI 316; seals PTFE/Graphoil/FKM; medium temperature -20...+160°C; DN 65mm; pressure range 0-16bar; flange PN16; length 170mm; operating time 27s; voltage 100-240VAC; NC-accumulator for safety position

Intrastat No.: 84818081
Country of origin: Italy

Weight: 22.26 Kg
Short Itemnumber: BA05165PH

2.349,00 € 2349.0 EUR 2.349,00 €

excl. tax

DN
- 65 mm
Length
- 170 mm
Flange
- PN16
Voltage
- 100-240VAC
Pressure range
- 0...16 bar
Actuator
- VB110H
Operating time
- 27 s
Brand
- STASTO

This combination does not exist.

Availability:

See availability

Add to cart

Technical specifications

Pressure range	0...16 bar
DN	65 mm
Flange	PN16
Length	170 mm

All specifications (7)

Specifications
Spare Parts

Pressure range	0...16 bar
DN	65 mm
Flange	PN16
Length	170 mm
Operating time	27 s
Voltage	100-240VAC
Brand	STASTO

760000-65 x 1.0 Pcs

Flanged ball valve 760000-65

Flanged ball valve Series 760000; ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1R27; Full bore; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Medium temperature -20...+160°C; With locking device; Nominal diameter 65mm; Pressure range 0-16bar; Flange PN16; Length 170mm

VB110-H-AKKU x 1.0 Pcs

Electrical actuator VB110-H-AKKU

Electrical actuator Series VB-AKKU; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Protection class IP67; Including Accumulator for safety position; Torque 110Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 100…240VAC; Function NC

RI3522 x 1.0 Pcs
