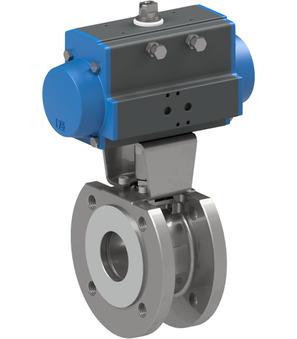

Flanged ball valve with pneumatic actuator BA052-65-S0

Flanged ball valve with pneumatic actuator BA052-65-S0

Flanged ball valve with pneumatic actuator Series BA052-S0; Flange PN40; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0…40bar; Nominal diameter 65mm; Length 103mm; Actuator PAS1605

Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 41.47 Kg
Short Itemnumber: BA05265S0
https://www.stasto.si/web/image/product.template/158520/image_1920?unique=f9f36bb

flanged ball valve with pneumatic actuator series BA052-S0; flange PN40; body, ball AISI 316; seals PTFE-reinforced/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0…40bar; nominal diameter 65mm; length 103mm; actuator PAS1605

2.522,70 € 2522.7 EUR 2.522,70 €

cena na zahtevo

excl. tax
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Contact material
  • Material of case
  • Coil
  • Actuator
  • Actuator 2

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0…40bar
DN 65 mm
Length 103 mm
Documents
Data sheets, drawings and CAD files
Pressure range 0…40bar
DN 65 mm
Length 103 mm

BA052-65-S0

Documents

1 Documents 7 Languages

Czech / Čeština
ZIP

Declarations of Conformity

1
German / Deutsch
ZIP

Declarations of Conformity

1
English
ZIP

Declarations of Conformity

1
Hungarian / Magyar
ZIP

Declarations of Conformity

1
Polish / Język polski
ZIP

Declarations of Conformity

1
Slovenian / slovenščina
ZIP

Declarations of Conformity

1
Serbian (Latin) / srpski
ZIP

Declarations of Conformity

1
Flanged ball valve BA052-65-L
BA052-65-L x 1.0 Pcs
Flanged ball valve BA052-65-L
Flanged ball valve Series BA052; Flange PN40; Full bore; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Pressure range 0...40bar; Medium temperature -20...+160°C; Nominal diameter 65mm; Length 103mm
Pneumatic actuator PAS1605
PAS1605 x 1.0 Pcs
Pneumatic actuator PAS1605
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 160mm; Flange ISO5211 F10/F12; Female square 27mm; Torque at 5,5bar 202Nm
RI3010 x 1.0 Pcs
RI3010
Mounting bracket; F10-F07; Bolt 22-14
Accessory Products
EB0X01
EB0X01
Material of case
Plastic
Brand
STASTO
EB0X02
EB0X02
Material of case
Plastic
Brand
STASTO
EB0X04YA
EB0X04YA
Material of case
Aluminum
Brand
STASTO
EB0X04YA-ULCSA-01
EB0X04YA-ULCSA-01
Material of case
Aluminum
Brand
STASTO
EB0X05
EB0X05
Design
ATEX
Material of case
Plastic
Brand
STASTO
RI4611
RI4611
Diameter
160 mm
RI4625
RI4625
Diameter
160 mm
RI4653
RI4653
Diameter
160 mm
