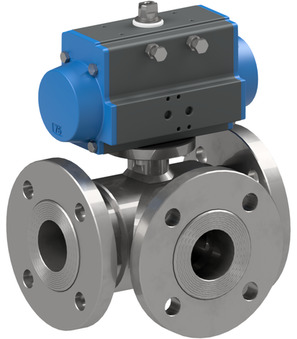

Flanged ball valve with pneumatic actuator BA056-80-SPD0-01

Name: Flanged ball valve with pneumatic actuator BA056-80-SPD0-01
Brand: STASTO
SKU: BA056-80-SPD0-01
Price: 5543.7 EUR
Availability: InStock

flanged ball valve with pneumatic actuator series BA055, BA056; 3-way-type; sealing on three ports; body AISI 316L polished; ball AISI 316L; seals PTFE/FKM; double acting actuator 180°; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 80mm; length 260mm; pressure range 0…16bar; flange PN16; actuator PAD100-180; ball T; flow path special

Intrastat No.: 84818081
Country of origin: Italy
Weight: 38.35 Kg
Short Itemnumber: BA05680SPD001

5.543,70 € 5543.7 EUR 5.543,70 €

DN
- 80 mm
Length
- 260 mm
Flange
- PN16
Ball
- T
Pressure range
- 0...16 bar
Actuator
- PAD100

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	80 mm
Length	260 mm
Flange	PN16
Designs
Ball	T
pressure
Pressure range	0...16 bar
characteristics
Actuator	PAD100

BA056-80-B x 1.0

Flanged ball valve BA056-80-B

Flanged ball valve Series BA055, BA056; Bare shaft; 3-way-type; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/FKM; Sealing on three ports; Medium temperature -20...+160°C; Nominal diameter 80mm; DN ball 80mm; Pressure range 0...16bar; Flange PN16; Length 260mm; Ball T; Flange ISO5211 F07; Square 17mm

Add to Cart

PAD100-180 x 1.0

Pneumatic actuator PAD100-180

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 180°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 150Nm

Add to Cart
