BA091-40-S2

Name: BA091-40-S2
Brand: STASTO
SKU: BA091-40-S2
Price: 994.3 EUR
Availability: InStock

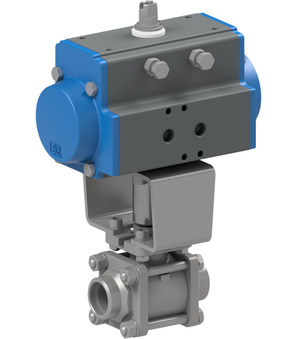

Ball valve with pneumatic actuator; For steam; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator; Control pressure 4...8bar; ; Medium temperature -20...+198°C; Pressure range Steam 0...15bar; Nominal diameter 40mm; Length 116mm; Actuator PAS1153

Intrastat No.: 84818081
Country of origin: Italy
Weight: 14.56 Kg
Short Itemnumber: BA09140S2

ball valve with pneumatic actuator; for steam; butt weld ends; body, ball AISI 316; seals PTFE-reinforced/FKM; single acting actuator; control pressure 4...8bar; ; medium temperature -20...+198°C; pressure range steam 0...15bar; nominal diameter 40mm; length 116mm; actuator PAS1153

994,30 € 994.3 EUR 994,30 €

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

BA091-40-L x 1.0

Ball valve made of stainless steel BA091-40-L

Ball valve made of stainless steel Series BA091; For steam; Full bore; Three-parts type; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Pressure range Steam 0...15bar; Medium temperature -20...+198°C; Nominal diameter 40mm; Length 116mm

Add to Cart

PAS1153 x 1.0

Pneumatic actuator PAS1153

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 115mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 60,8Nm

Add to Cart

RI3034 x 1.0
