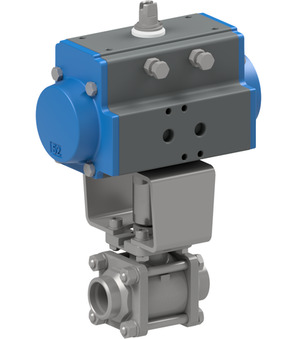

Ball valve with pneumatic rotary actuator BA091-65-D0-03

Ball valve with pneumatic rotary actuator BA091-65-D0-03

Ball valve with pneumatic rotary actuator Series BA091-D0B/D01; Weld-on ends; Housing, Ball 1.4401; Seals PTFE-reinforced/FKM; Double-acting actuator, oversized; Control pressure 5,5...8bar; Medium temperature -20...+198°C; Nominal diameter 65mm; Print area Steam 0...15bar; Installation length 153mm; Drive PAD100

Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 14.43 Kg
Short Itemnumber: BA09165D003
https://www.stasto.si/web/image/product.template/221064/image_1920?unique=909baaf

Ball valve with pneumatic rotary actuator Series BA091-D0B/D01; Weld-on ends; Housing, Ball 1.4401; Seals PTFE-reinforced/FKM; Double-acting actuator, oversized; Control pressure 5,5...8bar; Medium temperature -20...+198°C; Nominal diameter 65mm; Print area Steam 0...15bar; Installation length 153mm; Drive PAD100

1.238,80 € 1238.8 EUR 1.238,80 €

cena na zahtevo

excl. tax
  • Diameter
  • Male thread
  • Valve interface Namur
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Pressure range Steam
  • Coil
  • Actuator
  • Actuator 2

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16 bar
DN 65 mm
Pressure range Steam 0...15 bar
Length 153 mm
Documents
Data sheets, drawings and CAD files
Pressure range 0...16 bar
DN 65 mm
Pressure range Steam 0...15 bar
Length 153 mm

BA091-65-D0-03

Documents

1 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1
Danish / Dansk
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
Greek / Ελληνικά
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Spanish / Español
ZIP

Data Sheets

1
Finnish / Suomi
ZIP

Data Sheets

1
French / Français
ZIP

Data Sheets

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Italian / Italiano
ZIP

Data Sheets

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1
Dutch / Nederlands
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Romanian / română
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
Swedish / Svenska
ZIP

Data Sheets

1
Ball valve made of stainless steel BA091-65-L
BA091-65-L x 1.0 Pcs
Ball valve made of stainless steel BA091-65-L
Ball valve made of stainless steel Series BA091; For steam; Full bore; Three-parts type; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Pressure range Steam 0...15bar; Medium temperature -20...+198°C; Nominal diameter 65mm; Length 153mm
Pneumatic actuator PAD100
PAD100 x 1.0 Pcs
Pneumatic actuator PAD100
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 150Nm
RI3003 x 1.0 Pcs
RI3003
Mounting bracket; F07/F07; 17-14
