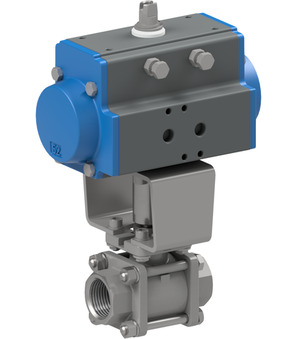

BA140-112-D0-01

BA140-112-D0-01

ball valve with pneumatic actuator; female thread; body, ball AISI 316; seals PTFE/FKM; low dead space; double acting actuator; special-control pressure 8bar; medium temperature -20...+160°C; RP 11/2"; nominal diameter 40mm; pressure range 0...25bar; length 116mm; special-actuator PAD063

Intrastat No.: 84818081
Country of origin: Italy
Weight: 4.66 Kg
Short Itemnumber: BA140112D001
https://www.stasto.si/web/image/product.template/221613/image_1920?unique=fb2cd3f

ball valve with pneumatic actuator; female thread; body, ball AISI 316; seals PTFE/FKM; low dead space; double acting actuator; special-control pressure 8bar; medium temperature -20...+160°C; RP 11/2"; nominal diameter 40mm; pressure range 0...25bar; length 116mm; special-actuator PAD063

734,60 € 734.6 EUR 734,60 €

cena na zahtevo

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    710009-11/2" x 1.0
    710009-11/2"
    Ball valve, female/female thread, three-piece body and ball 1.4401, ball seal PTFE full shell dead-space-free, spindle seal PTFE/FKM
    Add to Cart
    Pneumatic actuator PAD063
    PAD063 x 1.0
    Pneumatic actuator PAD063
    Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 36Nm
    Add to Cart
