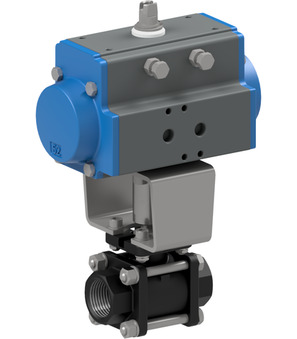

Ball valve with pneumatic actuator BA145-10-D0-A

Ball valve with pneumatic actuator BA145-10-D0-A

Ball valve with pneumatic actuator Series BA145-D0-A; For steam; ATEX II 2 G/D; Full bore; Three-parts type; Female thread; Body Steel; Ball 1.4301; Seals PTFE-reinforced/FKM; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+198°C; RP 1"; Nominal diameter 25mm; Pressure range Steam 0...15bar; Length 92mm; Actuator PAD052

Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 2.65 Kg
Short Itemnumber: BA14510D0A
https://www.stasto.si/web/image/product.template/145004/image_1920?unique=f96ddcc

ball valve with pneumatic actuator series BA145-D0-A; for steam; ATEX II 2 G/D; full bore; three-parts type; female thread; body steel; ball AISI 304; seals PTFE-reinforced/FKM; double acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -10...+198°C; RP 1"; nominal diameter 25mm; pressure range steam 0...15bar; length 92mm; actuator PAD052

999.999,00 € 999999.0 EUR 999.999,00 €

On request

  • Female thread
  • DN
  • Length
  • Design
  • Pressure range Steam
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Female thread RP 1"
DN 25 mm
Pressure range Steam 0...15 bar
Length 92 mm
All specifications (5)
Documents
Data sheets, drawings and CAD files
Female thread RP 1"
DN 25 mm
Pressure range Steam 0...15 bar
Length 92 mm
Design ATEX

BA145-10-D0-A

Documents

1 Documents 7 Languages

Czech / Čeština
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
Ball valve BA145-10-L-A
BA145-10-L-A x 1.0 Pcs
Ball valve BA145-10-L-A
Ball valve Series BA145-L-A; For steam; ATEX II 2 G/D; Full bore; Three-parts type; Female thread; Body Steel; Ball 1.4301; Seals PTFE-reinforced/FKM; Pressure range Steam 0...15bar; Medium temperature -10...+198°C; RP 1"; Nominal diameter 25mm; Pressure range Steam 0...15bar; Length 92mm
Pneumatic actuator PAD052
PAD052 x 1.0 Pcs
Pneumatic actuator PAD052
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 20Nm
RI3030 x 1.0 Pcs
RI3030
Mounting bracket; F05/F03-F04,11-8
