  6. BA152-10-S0-A

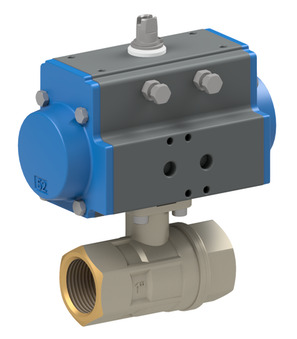

BA152-10-S0-A

BA152-10-S0-A

Ball valve with pneumatic actuator; Body Brass; Ball Stainless steel AISI 304; Seals PTFE/EPDM/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 1"; Nominal diameter 25mm; Pressure range 0-40bar; Length 90mm; Actuator PAS0525; ATEX-design

Intrastat No.: 84818081
Country of origin: Italy
Weight: 2.023 Kg
Short Itemnumber: BA15210S0A
https://www.stasto.si/web/image/product.template/130509/image_1920?unique=3970b0b

ball valve with pneumatic actuator; body brass; ball stainless steel AISI 304; seals PTFE/EPDM/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 1"; nominal diameter 25mm; pressure range 0-40bar; length 90mm; actuator PAS0525; ATEX-design

373,00 € 373.0 EUR 373,00 €

cena na zahtevo

  • Design

This combination does not exist.

Availability:
Contact Us

Share

Design ATEX
2530-1"-A x 1.0
2530-1"-A
Ball valve made of brass; Full bore; Female thread; Seal PTFE/FKM/EPDM; Medium temperature -20...+160°C; Without hand lever; Connection G 1"; Nominal diameter 25mm; Pressure range 0-40bar; Length 90mm; ATEX
Add to Cart
Pneumatic actuator PAS0525
PAS0525 x 1.0
Pneumatic actuator PAS0525
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 6,2Nm
Add to Cart
