BA152-114-T0-A

Name: BA152-114-T0-A
Brand: STASTO
SKU: BA152-114-T0-A
Price: 435.8 EUR
Availability: InStock

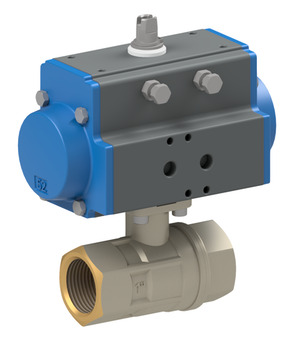

Ball valve with pneumatic actuator; Body, Ball Brass; Seals PTFE/FKM/EPDM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 11/4"; Nominal diameter 32mm; Pressure range 0-40bar; Length 102mm; Actuator PAS0525; ATEX-design; Safety position NO

Intrastat No.: 84818081
Country of origin: Italy
Weight: 2.308 Kg
Short Itemnumber: BA152114T0A

ball valve with pneumatic actuator; body, ball brass; seals PTFE/FKM/EPDM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 11/4"; nominal diameter 32mm; pressure range 0-40bar; length 102mm; actuator PAS0525; ATEX-design; safety position NO

435,80 € 435.8 EUR 435,80 €

Design
- ATEX

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

Design

ATEX

2530-11/4"-A x 1.0

2530-11/4"-A

Ball valve made of brass; Full bore; Female thread; Seal PTFE/FKM/EPDM; Medium temperature -20...+160°C; Without hand lever; Connection G 11/4"; Nominal diameter 32mm; Pressure range 0-40bar; Length 102mm; ATEX

Add to Cart

PAS0525-B x 1.0

Pneumatic actuator PAS0525-B

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Pinion turned by 90°; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 6,2Nm

Add to Cart
