BA160-50-S0-A-01

Name: BA160-50-S0-A-01
Brand: STASTO
SKU: BA160-50-S0-A-01

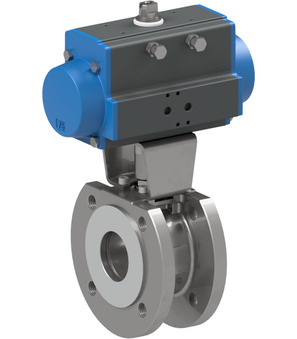

Flanged ball valve with pneumatic actuator; Flange PN16; Body, Ball 1.4301; Seals PTFE; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 50mm; Length 82mm; Actuator PAS1405; ATEX zone 1 and 21; Also suitable for solvents

Intrastat No.: 84818081
Country of origin: Italy
Weight: 29.52 Kg
Short Itemnumber: BA16050S0A01

flanged ball valve with pneumatic actuator; flange PN16; body, ball AISI 304; seals PTFE; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...16bar; nominal diameter 50mm; length 82mm; actuator PAS1405; ATEX zone 1 and 21; also suitable for solvents

On request

Design
- ATEX

This combination does not exist.

Availability:

Specifications
Spare Parts

Design

ATEX

BA160-50-L x 1.0

Flanged ball valve BA160-50-L

Flanged ball valve Series BA160-L; ATEX II 2 G/D; Flange PN16, Full bore; Body, Ball 1.4301; Seals PTFE; Pressure range 0...16bar; Medium temperature -20...+160°C; Nominal diameter 50mm; Length 82mm

Add to Cart

PAS1405 x 1.0

Pneumatic actuator PAS1405

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 140mm; Flange ISO5211 F10/F12; Female square 27mm; Torque at 5,5bar 114Nm

Add to Cart

ATSV1005 x 1.0
