BA161-12-D0

Name: BA161-12-D0
Brand: STASTO
SKU: BA161-12-D0

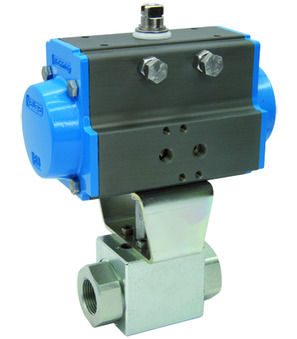

Ball valve with pneumatic actuator; Female thread; Body Zinc plated steel; Ball Steel; Seals POM/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; G 1/2"; Nominal diameter 13mm; Pressure range 0-500bar; Length 85mm; Actuator PAD063

Intrastat No.: 84818081
Country of origin: Italy
Weight: 2.53 Kg
Short Itemnumber: BA16112D0

ball valve with pneumatic actuator; female thread; body zinc plated steel; ball steel; seals POM/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -10...+100°C; G 1/2"; nominal diameter 13mm; pressure range 0-500bar; length 85mm; actuator PAD063

On request

This combination does not exist.

Availability:

Specifications
Spare Parts

No Specifications

BA161-12-B x 1.0

BA161-12-B

High pressure ball valve; Female thread; Body Zinc plated steel; Ball Steel; Seals POM/FKM; Medium temperature -10...+100°C; G 1/2"; Nominal diameter 13mm; Pressure range 0-500bar; Length 85mm

Add to Cart

PAD063 x 1.0

Pneumatic actuator PAD063

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 36Nm

Add to Cart

04805007001 x 1.0

04805007001

Mounting bridge; Zinc plated steel; Flange 1: F03/32mm; Flange 2: F05; Height 50mm

Add to Cart

A4/457/04 x 1.0

A4/457/04

Bolt; 1.4305; Diameter 20mm; Height of the bolt 47mm; Male square 14mm; Height of the male square 13mm; Female square 9mm; Height of the female square 8mm

Add to Cart
