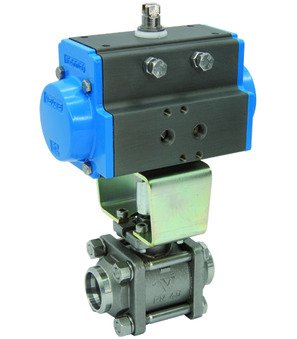

Ball valve with pneumatic actuator BA175-20-S0-A

Ball valve with pneumatic actuator BA175-20-S0-A

Ball valve with pneumatic actuator Series BA175-S; ATEX II 2 G/D; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FFKM; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 20mm; Pressure range 0-40bar; Length 76mm; Actuator PAS0635

Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 3.02 Kg
Short Itemnumber: BA17520S0A
https://www.stasto.si/web/image/product.template/138425/image_1920?unique=9e9aca3

ball valve with pneumatic actuator series BA175-S; ATEX II 2 G/D; butt weld ends; body, ball AISI 316; seals PTFE-reinforced/FFKM; double acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 20mm; pressure range 0-40bar; length 76mm; actuator PAS0635

999.999,00 € 999999.0 EUR 999.999,00 €

On request

  • DN
  • Length
  • Design
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...40 bar
DN 20 mm
Length 76 mm
Design ATEX
Pressure range 0...40 bar
DN 20 mm
Length 76 mm
Design ATEX
Ball valve made of stainless steel BA175-20-L
BA175-20-L x 1.0 Pcs
Ball valve made of stainless steel BA175-20-L
Ball valve made of stainless steel Series BA175-L; ATEX II 2 G/D; Full bore; Three-parts type; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FFKM; Medium temperature -20...+160°C; Fire-safe/ATEX-Antistatic design; Nominal diameter 20mm; Pressure range 0-40bar; Length 76mm
Pneumatic actuator PAS0635
PAS0635 x 1.0 Pcs
Pneumatic actuator PAS0635
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 10,6Nm
RI3783 x 1.0 Pcs
RI3783
Mounting bracket; F05/F03-F04,14-7
