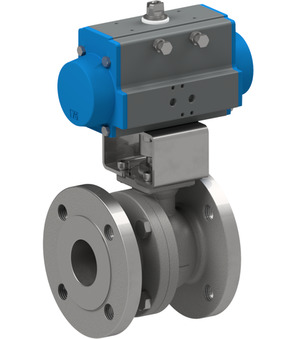

Flanged ball valve with pneumatic actuator BA178-40-D0

Flanged ball valve with pneumatic actuator BA178-40-D0

Flanged ball valve with pneumatic actuator Series BA178-D0; Fire-safe; TA-Luft; Length According to ANSI B16.10; Flange ANSI150; Full bore; Body 1.4408; Ball 1.4401; Seals PTFE/Graphoil/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...20bar; Nominal diameter 40mm; Length 165mm; Actuator PAD063

Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 9.38 Kg
Short Itemnumber: BA17840D0
https://www.stasto.si/web/image/product.template/130240/image_1920?unique=78aebe9

flanged ball valve with pneumatic actuator series BA178-D0; fire-safe; TA-Luft; length according to ANSI B16.10; flange ANSI150; full bore; body AISI 316; ball AISI 316; seals PTFE/Graphoil/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...20bar; nominal diameter 40mm; length 165mm; actuator PAD063

993,70 € 993.7 EUR 993,70 €

cena na zahtevo

excl. tax
  • DN
  • Length
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...20bar
DN 40 mm
Length 165 mm
Documents
Data sheets, drawings and CAD files
Pressure range 0...20bar
DN 40 mm
Length 165 mm

BA178-40-D0

Documents

1 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1
Danish / Dansk
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
Greek / Ελληνικά
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Spanish / Español
ZIP

Data Sheets

1
Finnish / Suomi
ZIP

Data Sheets

1
French / Français
ZIP

Data Sheets

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Italian / Italiano
ZIP

Data Sheets

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1
Dutch / Nederlands
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Romanian / română
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
Swedish / Svenska
ZIP

Data Sheets

1
Flanged ball valve BA178-40-L-A
BA178-40-L-A x 1.0 Pcs
Flanged ball valve BA178-40-L-A
Flanged ball valve Series BA178; ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to ANSI B16.10; Flange ANSI150; Full bore; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Pressure range 0...20bar; Medium temperature -20...+160°C; Nominal diameter 40mm; Length 165mm
Pneumatic actuator PAD063
PAD063 x 1.0 Pcs
Pneumatic actuator PAD063
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 36Nm
RI3521 x 1.0 Pcs
RI3521
Mounting kit for PKH F07/F05-F05 stud 14-10
Accessory Products
EB0X01
EB0X01
Material of case
Plastic
Brand
STASTO
EB0X02
EB0X02
Material of case
Plastic
Brand
STASTO
EB0X04YA
EB0X04YA
Material of case
Aluminum
Brand
STASTO
EB0X04YA-ULCSA-01
EB0X04YA-ULCSA-01
Material of case
Aluminum
Brand
STASTO
EB0X05
EB0X05
Design
ATEX
Material of case
Plastic
Brand
STASTO
RI4604
RI4604
Diameter
63 mm
RI4618
RI4618
Diameter
63 mm
RI4646
RI4646
Diameter
63 mm
