BA196-25-S0

Name: BA196-25-S0
Brand: STASTO
SKU: BA196-25-S0

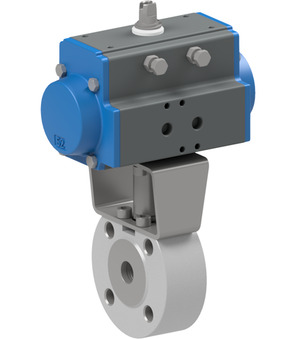

Flanged ball valve with pneumatic actuator; Flange PN16; Body, Ball 1.4301; Seals PTFE/FKM; Without dead space; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 25mm; Length 46mm; Actuator PAS0855

Intrastat No.: 84818081
Country of origin: Italy
Weight: 7.684 Kg
Short Itemnumber: BA19625S0

flanged ball valve with pneumatic actuator; flange PN16; body, ball AISI 304; seals PTFE/FKM; without dead space; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...16bar; nominal diameter 25mm; length 46mm; actuator PAS0855

On request

This combination does not exist.

Availability:

Specifications
Spare Parts

No Specifications

BA196-25-L x 1.0

Flanged ball valve BA196-25-L

Flanged ball valve Series BA196-L; Flange PN16, Full bore; Body, Ball 1.4401; Seals PTFE/FKM Without dead space; Pressure range 0...16bar; Medium temperature -20...+160°C; Nominal diameter 25mm; Length 46mm

Add to Cart

PAS0855 x 1.0

Pneumatic actuator PAS0855

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 28,7Nm

Add to Cart

ATSV0704 x 1.0
