BA196-40-S0

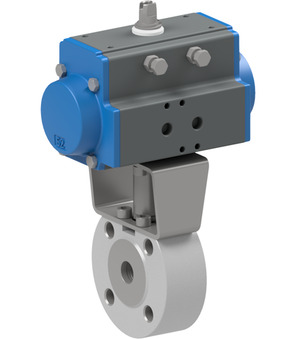

Flanged ball valve with pneumatic actuator; Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Without dead space; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 40mm; Length 63,5mm; Actuator PAS1255

Intrastat No.: 84818081
Country of origin: Italy
Weight: 19.08 Kg
Short Itemnumber: BA19640S0

flanged ball valve with pneumatic actuator; flange PN16; body, ball AISI 316; seals PTFE/FKM; without dead space; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...16bar; nominal diameter 40mm; length 63,5mm; actuator PAS1255

1.352,70 € 1352.7 EUR 1.352,70 €

excl. tax

Brand
- STASTO

This combination does not exist.

Availability:

See availability

Technical specifications

Pressure range	0...16bar
Brand	STASTO

Specifications
Spare Parts

Pressure range	0...16bar
Brand	STASTO

720002-40 x 1.0 Pcs

720002-40

Flanged ball valve DN40, PN16 body and ball 1.4401, seal PTFE full bore cavity-free

Pneumatic actuator PAS1255

PAS1255 x 1.0 Pcs

Pneumatic actuator PAS1255

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 125mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 88,1Nm

RI3009 x 1.0 Pcs

RI3009

Mounting bracket; F07/F05-F05; Bolt 17-10

Square adapter 22X17-22-Stahl

VK2217 x 1.0 Pcs

Square adapter 22X17-22-Stahl

Square adapter Series VK; 22X17; Length 22mm; Material Stahl

Accessory Products

EB0X01

Material of case: Plastic

Brand: STASTO

EB0X02

Material of case: Plastic

Brand: STASTO

EB0X04YA

Material of case: Aluminum

Brand: STASTO

EB0X04YA-ULCSA-01

EB0X04YA-ULCSA-01

Material of case: Aluminum

Brand: STASTO

EB0X05

Design: ATEX

Material of case: Plastic

Brand: STASTO

RI4609

Diameter: 125 mm

RI4623

Diameter: 125 mm

RI4651

Diameter: 125 mm
