BA233-16S-D0-01

BA233-16S-D0-01

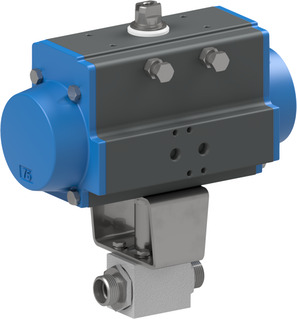

Ball valve with pneumatic actuator; Male thread According to ISO 8434-1 (DIN 2353); Body Zinc plated steel; Ball Steel; Seals POM/EPDM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+100°C; Connection 16S/M24x1,5; Nominal diameter 13mm; Pressure range 0...500bar; Length 86mm; Actuator PAD075

Intrastat No.: 84818081
Country of origin: Italy
Weight: 3.62 Kg
Short Itemnumber: BA23316SD001
https://www.stasto.si/web/image/product.template/145834/image_1920?unique=f53e996

ball valve with pneumatic actuator; male thread according to ISO 8434-1 (DIN 2353); body zinc plated steel; ball steel; seals POM/EPDM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+100°C; connection 16S/M24x1,5; nominal diameter 13mm; pressure range 0...500bar; length 86mm; actuator PAD075

528,10 € 528.1 EUR 528,10 €

cena na zahtevo

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Connection 16S/M24x1,5
Pressure range 0...500bar
Brand STASTO
Documents
Data sheets, drawings and CAD files
Connection 16S/M24x1,5
Pressure range 0...500bar
Brand STASTO

BA233-16S-D0-01

Documents

1 Documents

Language-independent
ZIP

CAD / 3D

1
BA233-16S-B-01 x 1.0 Pcs
BA233-16S-B-01
High pressure ball valve; Male thread according to DIN 2353; Drilled for mounting an actuator; Body Zinc plated steel; Ball Steel; Seals POM/EPDM; Medium temperature -20...+100°C; Connection 16S/M24x1,5; Nominal diameter 13mm; Pressure range 0...500bar; Length 86mm; Flange ISO5211 F03; Square 9mm
Pneumatic actuator PAD075
PAD075 x 1.0 Pcs
Pneumatic actuator PAD075
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 75mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 66Nm
04806007007 x 1.0 Pcs
04806007007
Mounting bridge; Zinc plated steel; Flange 1: F03/F04mm; Flange 2: F05; Height 50mm; Mounting table for RI3030
A4/223/96 x 1.0 Pcs
A4/223/96
Bolt; 1.4305; Diameter 20mm; Height of the bolt 43mm; Male square 14mm; Height of the male square 15mm; Female square 9mm; Height of the female square 10mm
