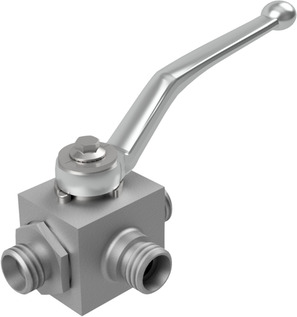

High pressure ball valve BA236-35L-L
High pressure ball valve Series BA236, BA646; 3-way-type; Sealing on two sides; Pressure inlet just in front; Male thread According to ISO 8434-1 (DIN 2353); Body Zinc plated steel; Ball Steel; Seals POM/NBR; Medium temperature -20...+100°C; For liquids; Connection 35L/M45x2; Nominal diameter 25mm; Pressure range 0...315bar; Length 112mm; Ball L
Country of origin: Germany
Weight: 2.5 Kg
Short Itemnumber:BA23635LL
high pressure ball valve series BA236, BA646; 3-way-type; sealing on two sides; pressure inlet just in front; male thread according to ISO 8434-1 (DIN 2353); body zinc plated steel; ball steel; seals POM/NBR; medium temperature -20...+100°C; for liquids; connection 35L/M45x2; nominal diameter 25mm; pressure range 0...315bar; length 112mm; ball L
| dimension | |
|---|---|
| Male thread | M45x2 |
| DN | 25 mm |
| Length | 112 mm |
| Designs | |
| Type | 35L |
| Ball | L |
| pressure | |
| Pressure range | 0...315 bar |
Data sheets, Instructions, 3D-files and Certificates...
