BA330-50-S0-A-01

BA330-50-S0-A-01

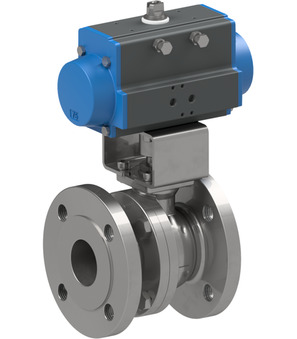

Flanged ball valve; ATEX II 2 G/D c T3; Fire-safe; TA-Luft; Length According to EN558−1 R27; Full bore; Body, Ball 1.4408; Seals PTFE/EPDM; Medium temperature -30...+160°C; Nominal diameter 50mm; Pressure range 0...40bar; Flange PN40; Length 150mm; Single acting actuator; Control pressure 5,5...8bar; Actuator PAS1155-L Low temperature equipment -40...+85°C

Intrastat No.: 84818081
Country of origin: Italy
Weight: 23.67 Kg
Short Itemnumber: BA33050S0A01
https://www.stasto.si/web/image/product.template/153656/image_1920?unique=f96ddcc

flanged ball valve; ATEX II 2 G/D c T3; fire-safe; TA-Luft; length according to EN558−1 R27; full bore; body, ball AISI 316; seals PTFE/EPDM; medium temperature -30...+160°C; nominal diameter 50mm; pressure range 0...40bar; flange PN40; length 150mm; single acting actuator; control pressure 5,5...8bar; actuator PAS1155-L low temperature equipment -40...+85°C

999.999,00 € 999999.0 EUR 999.999,00 €

On request

  • Design

This combination does not exist.

Availability:
Contact Us

Share

Design ATEX
BA330-50-L-A
BA330-50-L-A x 1.0
BA330-50-L-A
Flanged ball valve; ATEX II 2 G/D c T3; Fire-safe; TA-Luft; Length According to EN558−1 R27; Full bore; Body, Ball 1.4408; Seals PTFE/EPDM; Medium temperature -30...+160°C; Nominal diameter 50mm; Pressure range 0...40bar; Flange PN40; Length 150mm
Add to Cart
Pneumatic actuator PAS1155-L
PAS1155-L x 1.0
Pneumatic actuator PAS1155-L
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Seals Silicone; Temperature range -40...+85°C; Diameter 115mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 71,1Nm
Add to Cart
