BA368-32-S0-A

Name: BA368-32-S0-A
SKU: BA368-32-S0-A
Price: 887.7 EUR
Availability: InStock

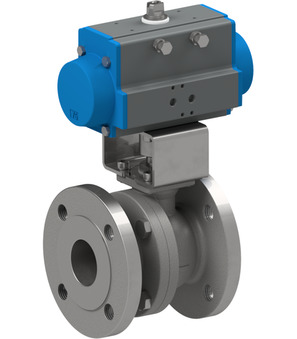

Flanged ball valve with pneumatic actuator; ATEX II 2 G/D c T3; Fire-safe; TA-Luft; Length According to EN558−1R27; Body, Ball 1.4408; Seals TFM-MPTFE/Graphoil/V-Pack PTFE; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -40...+180°C; Nominal diameter 32mm; Pressure range 0...40bar; Flange PN40; Length 130mm; Actuator PAS0635

Intrastat No.: 84818081
Country of origin: Italy
Weight: 8.31 Kg
Short Itemnumber:BA36832S0A

flanged ball valve with pneumatic actuator; ATEX II 2 G/D c T3; fire-safe; TA-Luft; length according to EN558−1R27; body, ball AISI 316; seals TFM-MPTFE/Graphoil/V-Pack PTFE; single acting actuator; control pressure 5,5...8bar; medium temperature -40...+180°C; nominal diameter 32mm; pressure range 0...40bar; flange PN40; length 130mm; actuator PAS0635

887,70 € 887.7 EUR 887,70 €

Design
- ATEX

This combination does not exist.

Availability:

Add to Cart

Specifications
Spare Parts

Design

ATEX

BA368-32-LLD-A x 1.0

Flanged ball valve BA368-32-LLD-A

Flanged ball valve Series BA368-LLD-A; ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1R27; Full bore; Body, Ball 1.4408; Seals TFM-MPTFE/PTFE/Graphoil; Stem sealing V-Pack; Medium temperature -40...+180°C; With locking device; Nominal diameter 32mm; Pressure range 0...40bar; Flange PN40; Length 130mm

Add to Cart

PAS0635 x 1.0

Pneumatic actuator PAS0635

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 10,6Nm

Add to Cart

RI3525 x 1.0
