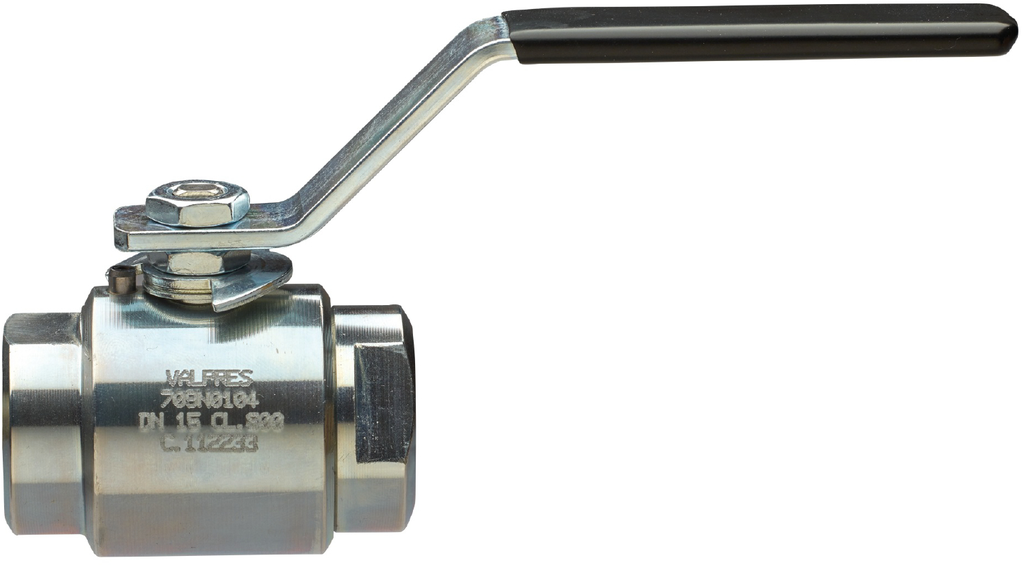

ball valve made of stainless steel BA469-12-LLD-A

Price:

223,30 €
Ball valve made of stainless steel Series BA469-LA Store
  1. Products
  2. Armatures
  3. Ball valves - manually operated
  4. Other materiales - A02
  5. Ball valve made of stainless steel Series BA469-LA
  6. BA469-12-LLD-A
ball valve made of stainless steel BA469-12-LLD-A
Ball valve made of stainless steel BA469-12-L-A
Ball valve made of stainless steel BA469-12-L-A
200,70 €
200,70 €
ball valve made of stainless steel BA469-12-LLD-A3C
ball valve made of stainless steel BA469-12-LLD-A3C
223,30 €
223,30 €

ball valve made of stainless steel BA469-12-LLD-A

ball valve made of stainless steel series BA469-LLD-A; ATEX II 2 G/D; Fire-Safe; full bore; two-parts type; female thread; body, ball AISI 316L; seals PTFE reinforced with carbographite; medium temperature -20...+160°C; nominal diameter 15mm; pressure range 0-138bar; connection RP 1/2"; length 75mm; free of oil and grease; Class 800; with locking device

Intrastat No.: 84818081
Country of origin: Italy
Short Itemnumber:BA46912LLDA
https://www.stasto.si/web/image/product.template/219957/image_1920?unique=09d0584

ball valve made of stainless steel series BA469-LLD-A; ATEX II 2 G/D; Fire-Safe; full bore; two-parts type; female thread; body, ball AISI 316L; seals PTFE reinforced with carbographite; medium temperature -20...+160°C; nominal diameter 15mm; pressure range 0-138bar; connection RP 1/2"; length 75mm; free of oil and grease; Class 800; with locking device

223,30 € 223.3 EUR 223,30 €

cena na zahtevo

  • Female thread
  • DN
  • Length
  • Design
  • Pressure range

This combination does not exist.

Availability:
Contact Us
dimension
Female thread RP 1/2"
DN 15 mm
Length 75 mm
design
Design ATEX
pressure
Pressure range 0...138 bar

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Ball valve made of stainless steel Series BA469-LA_EN.pdf
Download

ZIP
Datové listy
1
Datový list_kulový kohout - nerezový série BA469-LA_CS.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Edelstahlkugelhahn Serie BA469-LA_DE.pdf
Download

ZIP
Adatlapok
1
Adatlap_rozsdamentes gömbcsap sorozat BA469-LA_HU.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_zawór kulowy ze stali szlachetnej Seria BA469-LA_PL.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Krogelna pipa iz legiranega jekla serija BA469-LA_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_kuglasti ventil od nerđajućeg čelika serije BA469-LA_SRLATIN.pdf
Download
No spare parts are available for this product.
​
