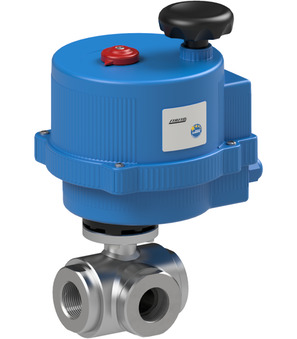

Ball valve with electrical actuator BA541-10-0L

Ball valve with electrical actuator BA541-10-0L

Ball valve with electrical actuator Series BA541, BA542; 3-way-type; Sealing on three ports; Body 1.4404 Polished, Ball 1.4404; Seals PTFE/FKM; Full bore; Medium temperature 0...+100°C; G 1"; DN 25mm; Pressure range 0…64bar; Length 102mm; Operating time 8s; Voltage 24VAC/DC; Ball T

Kugelhahn mit Elektroantrieb Serie BA541, BA542
Kugelhahn mit Elektroantrieb Serie BA541, BA542
Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 4.69 Kg
Short Itemnumber: BA541100L
https://www.stasto.si/web/image/product.template/137077/image_1920?unique=bcfc56d

ball valve with electrical actuator series BA541, BA542; 3-way-type; sealing on three ports; body AISI 316L polished, ball AISI 316L; seals PTFE/FKM; full bore; medium temperature 0...+100°C; G 1"; DN 25mm; pressure range 0…64bar; length 102mm; operating time 8s; voltage 24VAC/DC; ball T

999.999,00 € 999999.0 EUR 999.999,00 €

On request

  • Female thread
  • DN
  • Length
  • Ball
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...64 bar
DN 25 mm
Length 102 mm
Operating time 8 s
All specifications (7)
Documents
Data sheets, drawings and CAD files
Pressure range 0...64 bar
DN 25 mm
Length 102 mm
Operating time 8 s
Voltage 24VAC/DC
Ball T
Female thread G 1"

BA541-10-0L

Documents

2 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1

CAD / 3D

1
Danish / Dansk
ZIP

Data Sheets

1

CAD / 3D

1
German / Deutsch
ZIP

Data Sheets

1

CAD / 3D

1
Greek / Ελληνικά
ZIP

Data Sheets

1

CAD / 3D

1
English
ZIP

Data Sheets

1

CAD / 3D

1
Spanish / Español
ZIP

Data Sheets

1

CAD / 3D

1
Finnish / Suomi
ZIP

Data Sheets

1

CAD / 3D

1
French / Français
ZIP

Data Sheets

1

CAD / 3D

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Data Sheets

1

CAD / 3D

1
Italian / Italiano
ZIP

Data Sheets

1

CAD / 3D

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1

CAD / 3D

1
Dutch / Nederlands
ZIP

Data Sheets

1

CAD / 3D

1
Polish / Język polski
ZIP

Data Sheets

1

CAD / 3D

1
Romanian / română
ZIP

Data Sheets

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Data Sheets

1

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

CAD / 3D

1
Swedish / Svenska
ZIP

Data Sheets

1

CAD / 3D

1
Ball valve made of stainless steel BA541-10-B
BA541-10-B x 1.0 Pcs
Ball valve made of stainless steel BA541-10-B
Ball valve made of stainless steel Series BA541, BA542; Bare shaft; 3-way-type; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Sealing on three ports; Medium temperature -20...+170°C; G 1"; Nominal diameter 25mm; Pressure range 0…64bar; Length 102mm; Ball T; Flange ISO5211 F05; Square 14mm
Electrical actuator VB030-0E8-Q14
VB030-0E8-Q14 x 1.0 Pcs
Electrical actuator VB030-0E8-Q14
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 30Nm; Operating time 8s; Flange ISO5211 F03/F05-Stern 14mm; Voltage 24VAC/DC; Protection class IP67
