BA541-10-S0-3C-01
CVTE-P-25-NC-018
CVTE-P-25-NC-018
1.037,20 €
1.037,20 €
507330
507330
1.056,60 €
1.056,60 €

BA541-10-S0-3C-01

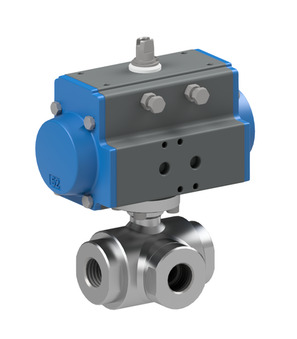

Ball valve with pneumatic actuator; 3-way-type; Sealing on three ports; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/FKM; Single acting actuator; Full bore; Control pressure 5,5...8bar; Medium temperature -20...+160°C; G 1"; Nominal diameter 25mm; Pressure range 0...40bar; Length 102mm; Actuator PAS1005; Ball T; Incl. inspection certificate 3.1 For pressure, function and tightness; FDA-approved

Intrastat No.: 84818081
Country of origin: Italy
Weight: 8.24 Kg
Short Itemnumber:BA54110S03C01
https://www.stasto.si/web/image/product.template/159650/image_1920?unique=dd719c3

ball valve with pneumatic actuator; 3-way-type; sealing on three ports; body AISI 316L polished; ball AISI 316L; seals PTFE/FKM; single acting actuator; full bore; control pressure 5,5...8bar; medium temperature -20...+160°C; G 1"; nominal diameter 25mm; pressure range 0...40bar; length 102mm; actuator PAS1005; ball T; incl. inspection certificate 3.1 for pressure, function and tightness; FDA-approved

1.185,18 € 1185.18 EUR 1.185,18 €

cena na zahtevo

    This combination does not exist.

    Availability:
    Contact Us
    No Specifications
    BA541-10-B-3C-01
    BA541-10-B-3C-01 x 1.0
    BA541-10-B-3C-01
    Ball valve made of stainless steel; Bare shaft; 3-way-type; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/FKM; Sealing on three ports; Medium temperature -20...+160°C; G 1"; Nominal diameter 25mm; Pressure range 0...40bar; Length 102mm; Ball T; Flange ISO5211 F05; Square 14mm; Incl. inspection certificate 3.1 For pressure, function and tightness; FDA-approved
    Add to Cart
    Pneumatic actuator PAS1005
    PAS1005 x 1.0
    Pneumatic actuator PAS1005
    Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 42,3Nm
    Add to Cart
    IV/00028/09 x 1.0
    IV/00028/09
    Bolt; 1.4305; Diameter 30mm; Height of the bolt 59mm; Male square 17mm; Height of the male square 18mm; Female square 14mm; Height of the female square 14mm
