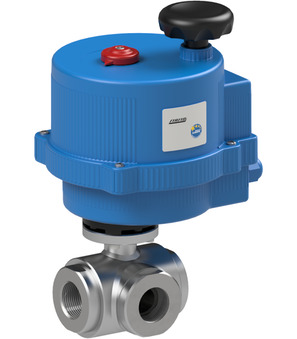

Ball valve with electrical actuator Series BA541, BA542; 3-way-type; Sealing on three ports; Body 1.4404 Polished, Ball 1.4404; Seals PTFE/FKM; Full bore; Medium temperature 0...+100°C; G 2"; DN 50mm; Pressure range 0…40bar; Length 144mm; Operating time 9s; Voltage 24VAC/DC; Ball T; Body Actuator Aluminum; IP68
Intrastat No.: 84818081
Country of origin: Italy
Weight: 0.53 Kg
Short Itemnumber: BA541200L02
Country of origin: Italy
Weight: 0.53 Kg
Short Itemnumber: BA541200L02
ball valve with electrical actuator series BA541, BA542; 3-way-type; sealing on three ports; body AISI 316L polished, ball AISI 316L; seals PTFE/FKM; full bore; medium temperature 0...+100°C; G 2"; DN 50mm; pressure range 0…40bar; length 144mm; operating time 9s; voltage 24VAC/DC; ball T
Technical specifications
| Pressure range | 0...40 bar |
|---|---|
| DN | 50 mm |
| Length | 144 mm |
| Operating time | 9 s |
| Pressure range | 0...40 bar |
| DN | 50 mm |
| Length | 144 mm |
| Operating time | 9 s |
| Voltage | 24VAC/DC |
| Ball | T |
| Female thread | G 2" |
| Brand | STASTO |
No spare parts are available for this product.
