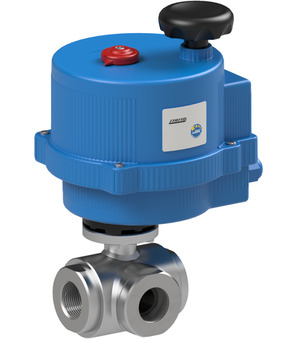

Ball valve with electrical actuator BA541-40-0L

Ball valve with electrical actuator BA541-40-0L

Ball valve with electrical actuator Series BA541, BA542; 3-way-type; Sealing on three ports; Body 1.4404 Polished, Ball 1.4404; Seals PTFE/FKM; Full bore; Medium temperature 0...+100°C; G 4"; DN 100mm; Pressure range 0…16bar; Length 240mm; Operating time 27s; Voltage 24VAC/DC; Ball T

Kugelhahn mit Elektroantrieb Serie BA541, BA542
Kugelhahn mit Elektroantrieb Serie BA541, BA542
Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 37.24 Kg
Short Itemnumber: BA541400L
https://www.stasto.si/web/image/product.template/137085/image_1920?unique=d79ab69

ball valve with electrical actuator series BA541, BA542; 3-way-type; sealing on three ports; body AISI 316L polished, ball AISI 316L; seals PTFE/FKM; full bore; medium temperature 0...+100°C; G 4"; DN 100mm; pressure range 0…16bar; length 240mm; operating time 27s; voltage 24VAC/DC; ball T

6.401,90 € 6401.9 EUR 6.401,90 €

cena na zahtevo

excl. tax
  • Female thread
  • DN
  • Length
  • Ball
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16 bar
Length 240 mm
Operating time 27 s
Voltage 24VAC/DC
All specifications (7)
Documents
Data sheets, drawings and CAD files
Pressure range 0...16 bar
Length 240 mm
Operating time 27 s
Voltage 24VAC/DC
Ball T
DN 100 mm
Female thread G 4"

BA541-40-0L

Documents

2 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1

CAD / 3D

1
Danish / Dansk
ZIP

Data Sheets

1

CAD / 3D

1
German / Deutsch
ZIP

Data Sheets

1

CAD / 3D

1
Greek / Ελληνικά
ZIP

Data Sheets

1

CAD / 3D

1
English
ZIP

Data Sheets

1

CAD / 3D

1
Spanish / Español
ZIP

Data Sheets

1

CAD / 3D

1
Finnish / Suomi
ZIP

Data Sheets

1

CAD / 3D

1
French / Français
ZIP

Data Sheets

1

CAD / 3D

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Data Sheets

1

CAD / 3D

1
Italian / Italiano
ZIP

Data Sheets

1

CAD / 3D

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1

CAD / 3D

1
Dutch / Nederlands
ZIP

Data Sheets

1

CAD / 3D

1
Polish / Język polski
ZIP

Data Sheets

1

CAD / 3D

1
Romanian / română
ZIP

Data Sheets

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Data Sheets

1

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

CAD / 3D

1
Swedish / Svenska
ZIP

Data Sheets

1

CAD / 3D

1
Ball valve made of stainless steel BA541-40-B
BA541-40-B x 1.0 Pcs
Ball valve made of stainless steel BA541-40-B
Ball valve made of stainless steel Series BA541, BA542; Bare shaft; 3-way-type; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Sealing on three ports; Medium temperature -20...+170°C; G 4"; Nominal diameter 100mm; Pressure range 0...16bar; Length 240mm; Ball T; Flange ISO5211 F07; Square 17mm
Electrical actuator VB190-L
VB190-L x 1.0 Pcs
Electrical actuator VB190-L
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 190Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 24VAC/DC; Protection class IP67
