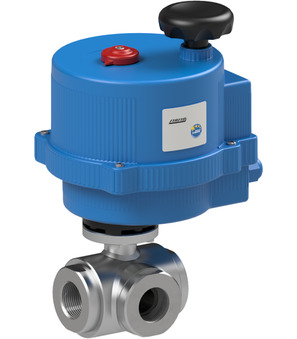

Ball valve with electrical actuator BA542-114-0H

Ball valve with electrical actuator BA542-114-0H

Ball valve with electrical actuator Series BA541, BA542; 3-way-type; Sealing on three ports; Body 1.4404 Polished, Ball 1.4404; Seals PTFE/FKM; Full bore; Medium temperature 0...+100°C; G 11/4"; DN 32mm; Pressure range 0…64bar; Length 118mm; Operating time 9s; Voltage 100-240VAC; Ball L

Kugelhahn mit Elektroantrieb Serie BA541, BA542
Kugelhahn mit Elektroantrieb Serie BA541, BA542
Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 7.73 Kg
Short Itemnumber: BA5421140H
https://www.stasto.si/web/image/product.template/137110/image_1920?unique=d79ab69

ball valve with electrical actuator series BA541, BA542; 3-way-type; sealing on three ports; body AISI 316L polished, ball AISI 316L; seals PTFE/FKM; full bore; medium temperature 0...+100°C; G 11/4"; DN 32mm; pressure range 0…64bar; length 118mm; operating time 9s; voltage 100-240VAC; ball L

1.460,20 € 1460.2 EUR 1.460,20 €

cena na zahtevo

excl. tax
  • Female thread
  • DN
  • Length
  • Ball
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...64 bar
DN 32 mm
Length 118 mm
Operating time 9 s
All specifications (7)
Documents
Data sheets, drawings and CAD files
Pressure range 0...64 bar
DN 32 mm
Length 118 mm
Operating time 9 s
Voltage 100-240VAC
Ball L
Female thread G 1 1/4"

BA542-114-0H

Documents

1 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1
Danish / Dansk
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
Greek / Ελληνικά
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Spanish / Español
ZIP

Data Sheets

1
Finnish / Suomi
ZIP

Data Sheets

1
French / Français
ZIP

Data Sheets

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Italian / Italiano
ZIP

Data Sheets

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1
Dutch / Nederlands
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Romanian / română
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
Swedish / Svenska
ZIP

Data Sheets

1
Ball valve made of stainless steel BA542-114-B-01
BA542-114-B-01 x 1.0 Pcs
Ball valve made of stainless steel BA542-114-B-01
Ball valve made of stainless steel Series BA541, BA542; Bare shaft; 3-way-type; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Sealing on three ports; Medium temperature -20...+170°C; G 11/4"; Nominal diameter 32mm; Pressure range 0…64bar; Length 118mm; Ball L; Flange ISO5211 F05; Square 14mm
Electrical actuator VB060-H
VB060-H x 1.0 Pcs
Electrical actuator VB060-H
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 60Nm; Operating time 9s; Flange ISO5211 F05/F07-Stern 14 mm; Voltage 100-240VAC; Protection class IP67
