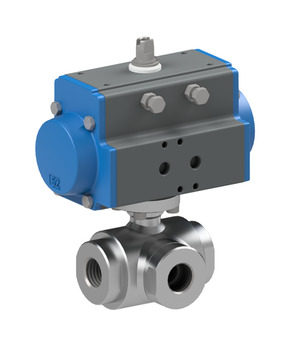

Ball valve with pneumatic actuator BA542-30-D0

Ball valve with pneumatic actuator BA542-30-D0

Ball valve with pneumatic actuator Series BA541, BA542; 3-way-type; Sealing on three ports; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Double acting actuator; Full bore; Control pressure 5,5...8bar; Medium temperature -20...+170°C; G 3"; Nominal diameter 80mm; Pressure range 0…40bar; Length 200mm; Actuator PAD100; Ball L

Kugelhahn mit Druckluftdrehantrieb Serie BA541, BA542
Kugelhahn mit Druckluftdrehantrieb Serie BA541, BA542
Kugelhahn mit Druckluftdrehantrieb Serie BA541, BA542
Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 25.7 Kg
Short Itemnumber: BA54230D0
https://www.stasto.si/web/image/product.template/136716/image_1920?unique=5dc8479

ball valve with pneumatic actuator series BA541, BA542; 3-way-type; sealing on three ports; body AISI 316L polished; ball AISI 316L; seals MPTFE/FKM; double acting actuator; full bore; control pressure 5,5...8bar; medium temperature -20...+170°C; G 3"; nominal diameter 80mm; pressure range 0…40bar; length 200mm; actuator PAD100; ball L

4.008,10 € 4008.1 EUR 4.008,10 €

cena na zahtevo

excl. tax
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Connector size
  • Ball
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...40 bar
DN 80 mm
Length 200 mm
Ball L
All specifications (5)
Documents
Data sheets, drawings and CAD files
Pressure range 0...40 bar
DN 80 mm
Length 200 mm
Ball L
Female thread G 3"

BA542-30-D0

Documents

1 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1
Danish / Dansk
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
Greek / Ελληνικά
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Spanish / Español
ZIP

Data Sheets

1
Finnish / Suomi
ZIP

Data Sheets

1
French / Français
ZIP

Data Sheets

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Italian / Italiano
ZIP

Data Sheets

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1
Dutch / Nederlands
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Romanian / română
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
Swedish / Svenska
ZIP

Data Sheets

1
Ball valve made of stainless steel BA542-30-B
BA542-30-B x 1.0 Pcs
Ball valve made of stainless steel BA542-30-B
Ball valve made of stainless steel Series BA541, BA542; Bare shaft; 3-way-type; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Sealing on three ports; Medium temperature -20...+170°C; G 3"; Nominal diameter 80mm; Pressure range 0...40bar; Length 200mm; Ball L; Flange ISO5211 F07; Square 17mm
Pneumatic actuator PAD100
PAD100 x 1.0 Pcs
Pneumatic actuator PAD100
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 150Nm
