BA668-12-S0-02

Name: BA668-12-S0-02
Brand: STASTO
SKU: BA668-12-S0-02

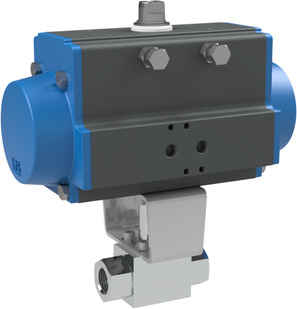

Ball valve with pneumatic actuator; Female thread; Body, Ball 1.4571/1.4404; Seals POM/FKM-Special; With erosion protection ring; Free of oil and grease; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -40...+200°C; For gases; G 1/2"; Nominal diameter 13mm; Pressure range 0...500bar; Length 83mm; Actuator PAS1005

Intrastat No.: 84818081
Country of origin: Italy
Weight: 8.22 Kg
Short Itemnumber: BA66812S002

ball valve with pneumatic actuator; female thread; body, ball AISI 316Ti/AISI 316L; seals POM/FKM-special; with erosion protection ring; free of oil and grease; single acting actuator; control pressure 5,5...8bar; medium temperature -40...+200°C; for gases; G 1/2"; nominal diameter 13mm; pressure range 0...500bar; length 83mm; actuator PAS1005

On request

This combination does not exist.

Availability:

Specifications
Spare Parts

No Specifications

BA668-12-B-02 x 1.0

BA668-12-B-02

High pressure ball valve; Female thread; Drilled for mounting an actuator; Body, Ball 1.4408; Seals POM/FKM-Special; With erosion protection ring; For gases; Medium temperature -40...+100°C; G 1/2"; Nominal diameter 13mm; Pressure range 0...500bar; Length 83mm; Flange ISO5211 F03; Square 9mm; Free of oil and grease

Add to Cart

PAS1005 x 1.0

Pneumatic actuator PAS1005

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 42,3Nm

Add to Cart

ATSV0703 x 1.0

ATSV0703

Mounting bridge; Material Zinc plated steel; Flange 1 F07; Flange 2 F03; Height 60mm

Add to Cart

IV/00088/13 x 1.0

IV/00088/13

Bolt; 1.4305; Diameter 20mm; Height of the bolt 55mm; Male square 14mm; Height of the male square 18mm; Female square 9mm; Height of the female square 9mm

Add to Cart
