BA775-12-S0-A0

Name: BA775-12-S0-A0
Brand: STASTO
SKU: BA775-12-S0-A0

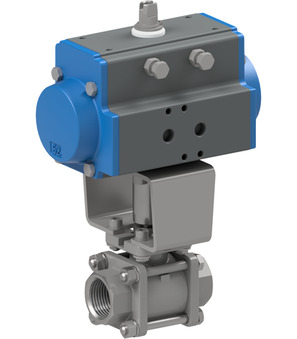

ball valve with pneumatic actuator; ATEX II 2 G/D; TA-Luft; female thread; housing, ball AISI 316; seals PTFE/FKM; compensation hole; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 1/2"; nominal diameter 15mm; pressure range 0-63bar; length 65mm; actuator PAS0635; NC; free of oil and grease for oxygen

Intrastat No.: 84818081
Country of origin: Italy
Short Itemnumber: BA77512S0A0

On request

Design
- ATEX

This combination does not exist.

Availability:

Specifications
Spare Parts

Design

ATEX

BA775-12-L-A0 x 1.0

Ball valve made of stainless steel BA775-12-L-A0

ball valve made of stainless steel series BA775-A; ATEX II 2 G/D; TA-Luft; full bore; three-parts type; female thread; housing, ball AISI 316; seals PTFE/FKM; compensation hole; medium temperature -20...+160°C; RP 1/2"; nominal diameter 15mm; pressure range 0...63bar; length 65mm; free of oil and grease for oxygen

Add to Cart

PAS0635 x 1.0

Pneumatic actuator PAS0635

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 10,6Nm

Add to Cart

RI3014 x 1.0
