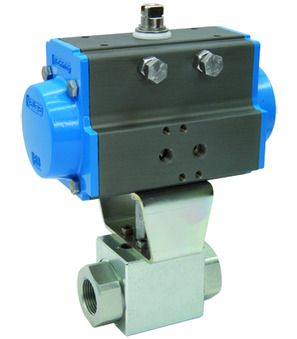

Ball valve with pneumatic actuator BA818-34-T0

Ball valve with pneumatic actuator BA818-34-T0

Ball valve with pneumatic actuator; Female thread; Body Zinc plated steel; Ball Steel; Seals POM/EPDM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+100°C; G 3/4"; Nominal diameter 20mm; Pressure range 0-400bar; Length 96mm; Actuator PAS1005; Safety position NO

Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 9.24 Kg
Short Itemnumber: BA81834T0
https://www.stasto.si/web/image/product.template/184979/image_1920?unique=658912b

ball valve with pneumatic actuator; female thread; body zinc plated steel; ball steel; seals POM/EPDM; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+100°C; G 3/4"; nominal diameter 20mm; pressure range 0-400bar; length 96mm; actuator PAS1005; safety position NO

672,20 € 672.2 EUR 672,20 €

cena na zahtevo

excl. tax
  • Female thread
  • DN
  • Length
  • Pressure range
  • Actuator
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...400 bar
Female thread G 3/4"
DN 20 mm
Length 96 mm
All specifications (5)
Documents
Data sheets, drawings and CAD files
Pressure range 0...400 bar
Female thread G 3/4"
DN 20 mm
Length 96 mm
Brand STASTO

BA818-34-T0

Documents

1 Documents 7 Languages

Czech / Čeština
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
BA818-34-B x 1.0 Pcs
BA818-34-B
High pressure ball valve; Female thread; Body Zinc plated steel; Ball Steel; Seals POM/EPDM; Medium temperature -10...+100°C; G 3/4"; Nominal diameter 20mm; Pressure range 0-400bar; Length 96mm; Drilled for mounting an actuator F04/SW14
Pneumatic actuator PAS1005
PAS1005 x 1.0 Pcs
Pneumatic actuator PAS1005
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 42,3Nm
ATSV0704 x 1.0 Pcs
ATSV0704
Mounting bridge; Material Zinc plated steel; Flange 1 F07; Flange 2 F04; Height 60mm
A4/338/99 x 1.0 Pcs
A4/338/99
Bolt; 1.4305; Diameter 25mm; Height of the bolt 54mm; Male square 14mm; Height of the male square 15mm; Female square 14mm; Height of the female square 15mm
