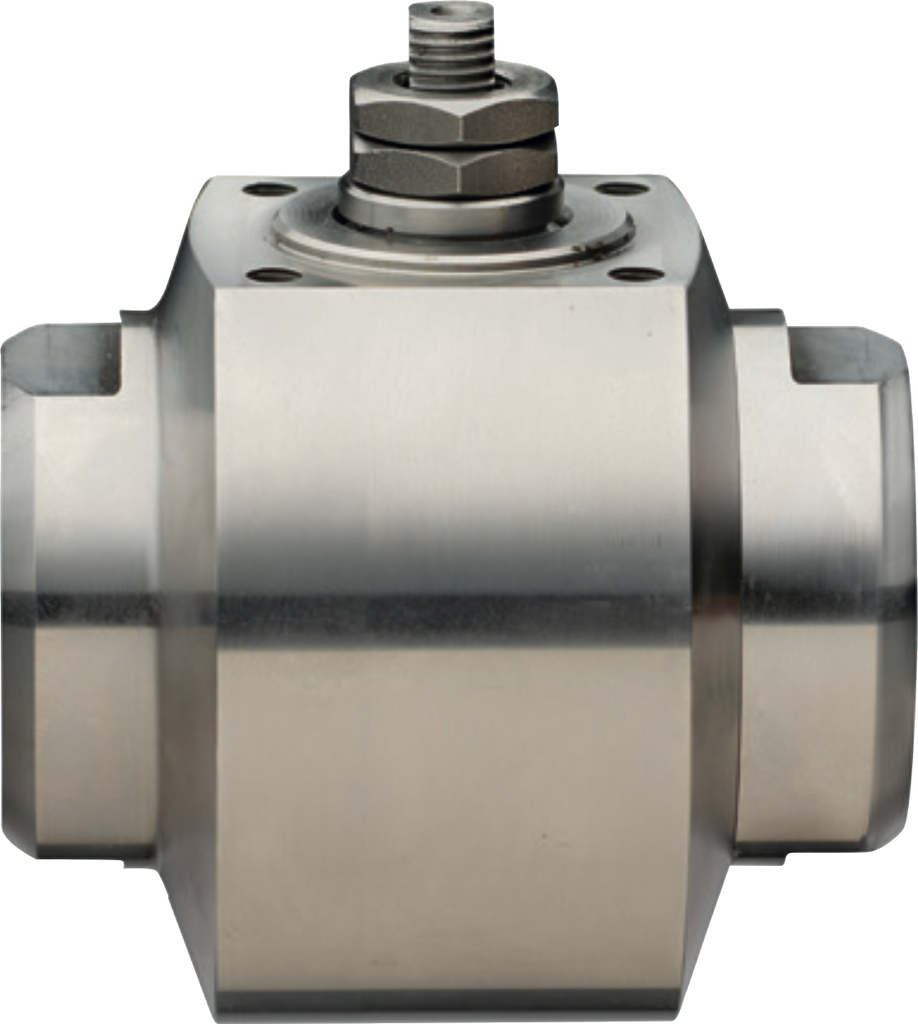

BA841-12N-B-AH

ball valve made of stainless steel; ATEX II 2G Ex h IIC T6...T1 Gb / II 2D Ex h IIIC T85°C...T450°C Db; Fire-Safe; Class 800; full bore; two-parts type; female thread; body, ball AISI 316L; seals PEEK/HNBR/V-Pack PTFE; medium temperature -40...+180°C; nominal diameter 15mm; pressure range 0...138bar; connection 1/2"NPT; length 75mm; mounting flange ISO5211 F04; two flat 7mm; free of oil and grease for hydrogen

Intrastat No.: 84818081
Country of origin: Italy
Weight: 1.639 Kg
Short Itemnumber:BA84112NBAH

ball valve made of stainless steel; ATEX II 2G Ex h IIC T6...T1 Gb / II 2D Ex h IIIC T85°C...T450°C Db; Fire-Safe; Class 800; full bore; two-parts type; female thread; body, ball AISI 316L; seals PEEK/HNBR/V-Pack PTFE; medium temperature -40...+180°C; nominal diameter 15mm; pressure range 0...138bar; connection 1/2"NPT; length 75mm; mounting flange ISO5211 F04; two flat 7mm; free of oil and grease for hydrogen
